Product information

11ac 1733+800Mbps wireless LAN gigabit router


Move easily, and, by function, even as for the replacement by purchase, smartphone is usable without troublesome setting; is IPv6 Trend Micro security deployment 11ac correspondence wireless LAN gigabit router which for (IPoE), niceness can watch as for 4K TV in peace.

11ac 1733+800Mbps wireless LAN gigabit router (WRC-2533GST2)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
11ac 1733+800Mbps wireless LAN gigabit router (WRC-2533GST2) WRC-2533GST2
11ac 1733+800Mbps wireless LAN gigabit router 17,970 yen (tax-excluded) New product

Product photo (※ to enlarge the images, please click)

Features of product

※1: It is theoretical maximum and is not thing indicating real Wireless speed.

※2: We assume use of apparatus within four per person and chase.

※3: This function works only with router mode. It becomes effective in initial value. In addition, it is not thing which guarantees a certain malice attack absolute effect. Please use after checking "permission to use Trend Micro manual".

※TREND MICRO and Trend Micro Smart Home Network are trademark registration of Trend Micro Inc.

It supports comfortable communication new service IPv6 (IPoE) on the high-speed Internet

FLET'S light, light collaboration IPv6 (IPoE) correspondence

In conventional Internet Connection method (PPPoE), the Internet became unstable by congestion of line, and speed might become slow. We come to be able to enjoy the Internet comfortably by passing different Network without congestion using two techniques of "IPv6 (IPoE)" and "IPv4 over IPv6" by next-generation method. Because this product supports this technique, high-speed Internet communication using "IPv6" is available.

※It supports MAP-E, DS-Lite method.
※It does not support IPv6 PPPoE.

Communication comfortable in IPv6 (IPoE)-adaptive router of ELECOM!

Now up-and-coming IPv6 new service. When net does not become slow, is it true? How does it come to be usable? Let's enjoy comfortable net life in corresponding router of ELECOM!

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

About IPv6 service, please see this in detail.

It has been checked the operation of IPv6 IPoE + IPv4 over IPv6 service, "v6 Plus" "transix"

It has been checked the operation in high speed Internet service "V6 Plus" and "transix" using IPv6. We can enjoy the comfortable Internet in This product if you can apply to correspondence provider.

※Application method varies among each service provider.
※"v6 Plus" is registered trademark of Japanese nettowakuineibura.
※"transix" is registered trademark of Internet multi-feeding company.

Fresh start of setting is equipped with non-pivot automatic line change function "ALS" at the time of transfer to IPv6 IPoE line

When we switched over from contract of PPPoE method to contract of IPv6 IPoE method, fresh start of setting is unnecessary, and service of IPv6 IPoE method is available. To use IPv6 service to continue working by PPPoE method when set by PPPoE method in general router once after having shifted to IPv6 service; setting change by manual operation initialized, and setting fresh start was necessary.

As line identification function acts on This product automatically in timing when conversion to IPv6 service was completed by ALS (Auto Line Switching), we can use new service without trouble to change setting of router.

The DX ANTENNA supervision high power built-in antenna deployment

We made use of know-how of DX ANTENNA of well-established antenna maker in antenna design. We originally realized effective communication for all directions by being particular to placement shop, and putting plural antennas together because there was direction that was easy to make radio wave qualitatively to antenna. But is available comfortably easily without minding place and direction to establish; is designed.

Conventionally, we realize 577% of super-high-speed communication in comparison with standard (※) New generation standard "11ac" adoption

New generation standard "11ac" which realizes giga Wi-Fi

By new generation standard 11ac corresponding to general purpose high 5GHz communication, is strong for electric wave interference in PC of the use, in before in comparison with standard is realization by ultraspeed communication of approximately 577%. ※The speed is a value of standard, and the actual speed depends on the environment.

Because it is dual band, we are connected in various ways

High speed Wi-Fi communication that is comfortable by dual band correspondence of Wireless LAN11n/g/b standard of general purpose high 2.4GHz band and 11ac/n/a standard of 5GHz Zone resisting electric wave interference is available.

High-speed processing dual-core CPU is equipped with plural data at the same time!

We realize high-speed process in 2 cores

We reduce outbreak awaiting processing by performing internal processing in two cores at the same time and realize higher-speed communication.

As for the Wi-Fi router of ELECOM, this is great! (dual-core CPU) [GS series]

We introduce "dual-core CPU" equipped with by wireless LAN router of ELECOM. As two core performs plural processes at the same time, communication speed improves

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

Evasion band steering automatically carries congestion band

When we connect Wi-Fi apparatuses such as smartphone or tablet to This product, This product distinguishes the congestion situation of electric wave and it is automatic and guides to vacant band. We dissolve congestion of communication and can communicate comfortably.

※This function becomes effective after shipment.

Stable communication beam forming Z high-speed in iPhone, smartphone

"Beam forming Z" where radio wave leads to

It is available comfortably at place where electric wave was hard to reach so far including place away from Wi-Fi and place with many obstacles. We send electric wave to place that goes, and is hard to be crowded of electric wave well.
We can anticipate enough speed up in not only iPhone but also conventional smartphone by original tuning.

※It is necessary for the connected smartphone side to support beam forming.

"Beam forming Z" where radio wave leads to

Special feature: Beam forming Z

iPhone/ smartphone corresponding to beam forming Z arrives by stable communication well to “ distance! "“ Wi-Fi speedup! "

It supports iPhone / smartphone! Beam forming Z! Plural beams raise electric wave strength to far-off terminal!

Even use plurally supports fast MU-MIMO at the same time

Up to four and concurrent communication, processing are possible

If the terminal side supports MU-MIMO by the MU-MIMO function deployment that can send separate data to plural terminals, up to four and concurrent communication, processing are possible.

※It is necessary for the connected smartphone side to support MU-MIMO.

All port Giga correspondence to make the most of giga light

It supports giga communication

Speed such as optical lines (giga service) that speedup advances is utilized to the full by video distribution

Communication super-high-speed by hardware NAT

We suppress packet L.A. and realize high-speed throughput by performing communication processing with hardware in comparison with communication processing by software. Because Wireless is available with maintaining high speed communication such as optical lines, it is most suitable for Wi-Fi connection such as smartphone. Throughput that was approximately 200-300Mbps in before is available for large speedup of a maximum of 940Mbps.

※This function works at the time of connection in IPv4. We cannot set on IPv6 connection.

We shorten initial setting procedure more! It is usable immediately! Simple setup 4

We distinguish used line automatically when we connect LAN cable to INTERNET port of This product. We become able to use the Internet immediately.

※Initial setting screen may be displayed depending on line of the use. According to instructions of screen, setting is the end if we input contract information with provider.

We can complete Wi-Fi connection just to read QR cord that iPhone after iOS11 was listed in brief setup seat attached in the case of the use by standard camera application.

※Similar setting is possible by some application in Android.
※Different value is listed in SSID, encrypting key, password, MAC address, serial number every one.

Setting moves without trouble easily, and even replacement by purchase functions

When we move easily and use function, This product can copy Wireless setting of used router. We are begun to use smoothly without setting one interconnect equipment again after having bought a new.

The Trend Micro Smart in-home network function deployment to protect interconnect equipment from menace

By cooperation in business with Trend Micro Corporation of industry leader class, we add to vicious website block function and prevent information leakage via C&C server by blocking defense for attack to aim at weakness newly and connection to C&C server.

In addition, Network household appliances which not only apparatuses such as smartphone or PC but also security software cannot install come by security measure because they can protect all the apparatuses connected to This product.

※This function works only with router mode. It becomes effective in initial value. In addition, it is not thing which guarantees malicious attack absolute effect. Please use after checking "permission to use Trend Micro book".
※It becomes service until date when we announced for up to five years. But it may not be over the end of April, 2026.

Child net timer 3 which protects child from long-time Internet usage

We can restrict connection of Mobile game console and smartphone connecting with the Internet by Wi-Fi. We can use in combination schedule setting to allow you to use in timer setting to limit time that we can take advantage of per day and fixed time.

※This function works only with router mode.

It is functioned by Wi-Fi in customers hospitality "friend Wi-Fi™"

We can easily offer Wi-Fi for exclusive use of customer including friend and relative if we use "friend Wi-Fi™" (guest SSID) function.

Setting only turns on Wi-Fi from Web browser, too. Besides, privacy can provide Wi-Fi in spite of being defense safely well as it is separated from Wi-Fi for you by security.

We update update automatic firmware in the latest firmware and are always functioned

We are reliable by automatic update

We automatically update in the latest firmware.

You can use router by the always latest program including addition and bug correction of new feature.

The change operation mode change over Switch deployment simple with slide switch

As well as router mode, we can use in access point mode, cordless handset mode, repeater mode. We can easily change change of mode in back Switch.

It is usable with Wireless cordless handset mode

We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.

It is usable with repeater mode

Place where electric wave of Wi-Fi is hard to reach by changing This product to repeater mode can use the Internet comfortably.

※This product which is repeater mode of upper figure cannot have you connect one relay and use anymore.

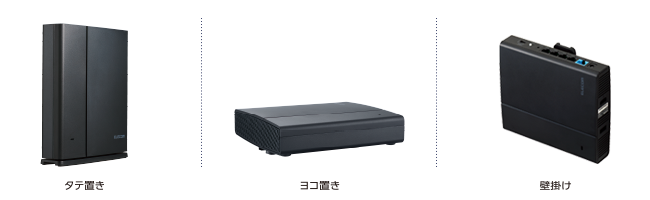

Length holder, width holder, wall hangings correspondence that it is easy to install in various places in house

It supports length holder, width holder, three kinds of setting methods of wall hangings. Setting that is flexible depending on TV and the situation of living including gap and wall surface of TV stand is possible.

The LED shading panel deployment not to be worried about blinking of lamp at midnight

By the deployment of shading panel, we were not worried about blinking of night LED lamp. We show only POWER lamp to understand whether you work at first sight, and it is in shape to cover remaining lamp.

In addition, we list initial value of setting information in shading panel and can confirm immediately if we remove panel at the time of Wi-Fi connection.

※Different value is listed in SSID, encrypting key, password, MAC address, serial number every one.


□Wireless LAN part
Wireless LAN standard IEEE 802 .11ac conformity
IEEE 802 .11n conformity
IEEE 802 .11a conformity
IEEE 802 .11b conformity
IEEE 802 .11 g conformity
Frequency Range: 2.4GHz band: 2,400-2,484MHz
5.2GHz zone (W52): 5,150-5,250MHz
5.3GHz zone (W53): 5,250-5,350MHz
5.6GHz zone (W56): 5,470-5,725MHz
Channel 2.4GHz band: 1 - 13ch
5GHz zone (W52/W53/W56):
Basic transmission scheme IEEE 802 .11ac: MIMO-OFDM
IEEE 802 .11n: MIMO-OFDM
.11 g of IEEE 802: OFDM
IEEE 802 .11b: DS-SS
IEEE 802 .11a: OFDM
Line speed (theoretical value) IEEE 802 .11ac: Up to 1,733Mbps
IEEE 802 .11n: Up to 800Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
IEEE 802 .11a: Up to 54Mbps
Antenna Eight built-in antennas
・2.4GHz band: Four transmission and reception
・5GHz zone: Four transmission and reception
Security WPA2-PSK(AES)
Access method Infrastructure
Multi-SSID Correspondence (2.4GHz: to up to three /5GHz: up to two, most big plan five)
Connection number 24 recommendation
Setting method WPS correspondence
Separator function Privacy separator / SSID separator correspondence (it functions "only for friend Wi-Fi™")
Other Wireless functions SSID stealth bomber setting / automatic channel setting

※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.

□Wired LAN part
Wired LAN standard IEEE 802 .3ab(1000BASE-T) conformity
IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 4 port
※All port Auto MDI/MDI-X, Auto-Negotiation correspondence
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
Wired LAN standard IEEE 802 .3ab(1000BASE-T) conformity
IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 1 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
Hardware NAT Correspondence
□Router part
Equipment mode Router mode
Access point mode
Repeater mode
Cordless handset mode
Use protocol TCP/IP (IPv6/IPv4)
WAN setting Automatic judgment / DHCP / fixation IP address / PPPoE (1 session)
LAN setting DHCP server / fixation IP address
Other functions / access control-response / IPv6 pass-through-adaptive / VPN pass-through-adaptive / DMZ correspondence for UPnP
□Other Specifications
Power supply connector DC Jack
Input Voltage AC100 - 240V ±10% 50/60Hz
Operating environment Temperature: 0 degrees Celsius - 40 degrees Celsius humidity: 10% - 85% (but thing without dew condensation)
Power consumption Approximately 13.2W (maximum)
Dimensions (width X D X H) (W)Approximately 141.0* (D) approximately 36.5* (H) approximately 160.0mm (only as for the body)
Weight : Approximately 380 g (only as for the body)
Various acquisition standards VCCI Class B / TELEC / JATE / PSE
Term of a guarantee One year
Incidental service The Trend Micro Corporation Smart Home Network function deployment (up to five years)
Accessories: One wireless LAN router body, stands one, exclusive AC adapter one, LAN cable (approximately 1m) one, two screws, various Manual for wall hangings, simple setup seat one piece, Trend Micro licensing book one piece

Each part name

  • ① WPS lamp
  • ② 2.4GHz lamp
  • ③ 5GHz lamp
  • ④ POWER lamp
  • ⑤ Operation mode change over Switch
  • ⑥ WPS button
  • ⑦ RESET button
  • ⑧ LAN port /LAN lamp 1-4
  • ⑨ INTERNET port /INTERNET lamp
  • ⑩ DC IN (power jack)
  • ⑪ Stands arming department (the back side)
  • ⑫ Stands arming department (base)
  • ⑬ Stand / Holder

Supported OS

  • ※Mac OS X is limited to use in plane mounted with CPU made by Intel.
  • ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
  • ※The latest correspondence situation, please identify correspondence table page.

Supported devices:

  • iPhone series
  • Android terminal
  • iPad series
  • Android terminal
  • Windows terminal
  • Windows-based machine
  • Mac OS-based machine
Game apparatus
  • Nintendo Switch
  • 3DS/DS series
  • PSP series
  • PS3/4
  • Wii/Wii U
  • Xbox360
  • Canon
  • HP
Smart speaker
  • Google/Google home
  • LINE/Clova WAVE
  • ※Version of the OS, please identify the product page "correspondence OS".
  • ※The latest correspondence situation, please identify correspondence table page.
