Product information

11ac 867+300Mbps wireless LAN router

WRC-1167FS-B

11ac-adaptive simple setting wireless LAN router which is not in trouble in efficiency by compact design of palm Dimensions in place either good to use of smartphone.

11ac 867+300Mbps wireless LAN router (WRC-1167FS-B)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
11ac 867+300Mbps wireless LAN router (WRC-1167FS-B) WRC-1167FS-B
4953103330870
< Black > 11ac 867+300Mbps wireless LAN router 5,120 yen (tax-excluded) It is limited to stock
11ac 867+300Mbps wireless LAN router (WRC-1167FS-W) WRC-1167FS-W
4953103330887
< White > 11ac 867+300Mbps wireless LAN router 5,120 yen (tax-excluded) It is limited to stock

Product photo (※ to enlarge the images, please click)

Features of product

※1: It is theoretical maximum and is not thing indicating real Wireless speed.

※2: Eyes cheap six (we assume the use within 3 terminals per person.) of connection number

CD-ROM and application are unnecessary. We shine, and TV sets in a mass, too! In smartphone and PC "simple setup 3"

Setup of downloading and CD drive of application is unnecessary, and, let alone PC, even smartphone tablet simple substance is available for setting. In addition, access to setting window after the next time becomes easy if we click detailed setting after the setting completion, and bookmark does setting window.

Procedure of initial setting

To use Wireless router in peace

ID and password to log in to setting window of Wireless router are usually set to fixed price.
In late years we abuse this and renew setting, and technique to let you access unjust site strides. We recommend that we have you raise security by having value of customer original do password at the time of setting window login not fixation level peculiar to maker as countermeasure to this trick in ELECOM.

It is easy to see setting window, and we are automatically adjusted even by smartphone! Setting window of flexible design

When we set child net timer 3 using "friend Wi-Fi™", it is setable with both PC smartphone. As form of icon of setting window is automatically adjusted to Dimensions of screen, we can set with screen which it is easy to see even from which terminal.

It is functioned by Wi-Fi in customers hospitality "friend Wi-Fi™"

We can easily offer Wi-Fi for exclusive use of customer including friend and relative if we use "friend Wi-Fi™" (guest SSID) function.

Setting only turns on Wi-Fi from Web browser, too. Besides, privacy can provide Wi-Fi in spite of being defense safely well as it is separated from Wi-Fi for you by security.

Conventionally, we realize 280% of super-high-speed communication in comparison with standard (※) High-speed wireless LAN standard "11ac" correspondence

New generation standard "11ac" which realizes giga Wi-Fi

It is correspondence in high speed wireless LAN standard "11ac" which utilizes 5GHz obi resisting electric wave interference, and improved maximum velocity by opening way of electric wave more. In comparison with conventional standard "11n" is realization ※ at a maximum of 867Mbps in speed of approximately 280% of up ※The speed is a value of standard, and the actual speed depends on the environment.

Because it is dual band, we are connected in various ways

High speed Wi-Fi communication that is comfortable by dual band correspondence of Wireless LAN11n/g/b standard of general purpose high 2.4GHz band and 11ac/n/a standard of 5GHz Zone resisting electric wave interference is available.

Stable communication high-speed in iPhone, smartphone Beam forming Z

"Beam forming Z" where radio wave leads to

It is available comfortably at place where electric wave was hard to reach so far including place away from Wi-Fi and place with many obstacles. We send electric wave to place that goes, and is hard to be crowded of electric wave well.
We can anticipate enough speed up in not only iPhone but also conventional smartphone by original tuning.
※It is necessary for the connected smartphone side to support beam forming.

"Beam forming Z" where radio wave leads to

As for the Wi-Fi router of ELECOM, this is great! (beam forming Z)

We introduce "beam forming Z" equipped with by wireless LAN router of ELECOM. As we make radio wave in place that we aimed at, communication speed with far-off smartphone improves

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

Special feature: Beam forming Z

iPhone/ smartphone corresponding to beam forming Z arrives by stable communication well to “ distance! "“ Wi-Fi speedup! "

It supports iPhone / smartphone! Beam forming Z! Plural beams raise electric wave strength to far-off terminal!

The Wi-Fi performance refreshing built-in antenna [11ac 2 X 2] deployment that is most suitable for the latest smartphone

We incorporate antenna of transmission and reception 2 X 2

It is equipped with 2.4GHz, antenna two of 5GHz common use and realizes high-speed wireless communication although being compact.

It is equipped with operation mode of two simple changes with slide switch

It is equipped with two operation modes of router mode and access point mode. We can easily change operation mode with back slide switch. ※It becomes router mode at the time of factory shipment. Even if router is installed in high rank, we work without problem basically.

"Compact design" to be appreciated in length holder / width holder both correspondence place

Compact Dimensions of approximately 3.2cm slight as for / side 11cm, the thickness vertical as for the body. As it is correspondence with both length holder / width holders, we are not in trouble in place when you use in efficiencies either.

We update update automatic firmware in the latest firmware and are always functioned

We are reliable by automatic update

We automatically update in the latest firmware.

You can use router by the always latest program including addition and bug correction of new feature.

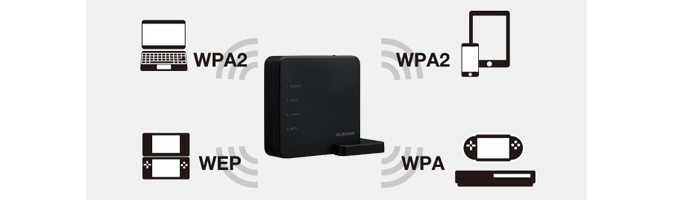

The multi-SSID function deployment to be usable with various apparatuses with keeping high security

We can set plural SSID

It is function that can set plural SSID in one wireless LAN access point. We connect with various apparatuses with keeping high security.

Multi-SSID

Specifications

□Wireless LAN part
Wireless LAN standard IEEE 802 .11ac conformity
IEEE 802 .11n conformity
IEEE 802 .11a conformity
IEEE 802 .11b conformity
IEEE 802 .11 g conformity
Frequency Range: 2.4GHz band: 2,400-2,484MHz
5.2GHz zone (W52): 5,150-5,250MHz
5.3GHz zone (W53): 5,250-5,350MHz
5.6GHz zone (W56): 5,470-5,725MHz
Channel 2.4GHz band: 1 - 13ch
5GHz zone (W52/W53/W56):
36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140ch
Basic transmission scheme IEEE 802 .11ac: MIMO-OFDM
IEEE 802 .11n: MIMO-OFDM
.11 g of IEEE 802: OFDM
IEEE 802 .11b: DS-SS
IEEE 802 .11a: OFDM
Line speed (theoretical value) IEEE 802 .11ac: Up to 867Mbps
IEEE 802 .11n: Up to 300Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
IEEE 802 .11a: Up to 54Mbps
Antenna Two built-in antennas
2.4GHz/5GHz Zone: Two transmission and reception
Security WPA2-PSK(AES)
WPA-PSK(TKIP)
WEP(64bit/128bit)
Access method Infrastructure
Multi-SSID Correspondence (2.4GHz: to up to three /5GHz: up to two, most big plan five)
Connection number Two recommendation (up to six)
Setting method WPS correspondence
Separator function Privacy separator / SSID separator correspondence (it functions "only for friend Wi-Fi™")
Other Wireless functions SSID stealth bomber setting / automatic channel setting

※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.

□Wired LAN part
LAN
Interface
Wired LAN standard IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 1 port
※All port Auto MDI/MDI-X, Auto-Negotiation correspondence
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
WAN
Interface
Wired LAN standard IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 1 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
Hardware NAT Non-compliant
□Router part
Equipment mode Router mode
Access point mode
Use protocol TCP/IP (IPv6/IPv4)
WAN setting DHCP / fixation IP address / PPPoE (1 session)
LAN setting DHCP server / fixation IP address
Other functions / access control-response / IPv6 pass-through-adaptive / VPN pass-through-adaptive / DMZ correspondence for UPnP
□Other Specifications
Power supply connector DC Jack
Input Voltage AC100V 50/60Hz
Operating environment Temperature: 0 degrees Celsius - 40 degrees Celsius humidity: 10% - 85% (but thing without dew condensation)
Power consumption Approximately 4.4W (maximum)
Dimensions (width X D X H) (W)Approximately 110.0* (D) approximately 32.0* (H) approximately 110.0mm (only as for the body)
Weight : Approximately 150 g (only as for the body)
Various acquisition standards VCCI Class B / TELEC / JATE / PSE
Term of a guarantee One year
Incidental service None
Accessories: One wireless LAN router body, stands one, exclusive AC adapter one, LAN cable (approximately 1m) one, various Manual, simple setup seat one piece

Each part name

  • ① WPS lamp
  • ② RESET button
  • ③ POWER lamp
  • ④ 5GHz lamp
  • ⑤ 2.4GHz lamp
  • ⑥ WPS lamp
  • ⑦ Operation mode change over Switch
  • ⑧ LAN port /LAN lamp
  • ⑨ INTERNET port /INTERNET lamp
  • ⑩ DC IN (power jack)
  • ⑪ Stand / Holder

Supported OS

  • ※Mac OS X is limited to use in plane mounted with CPU made by Intel.
  • ※We cope after Windows Vista SP1.
  • ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
  • ※The latest correspondence situation, please identify correspondence table page.

Supported devices:

Smartphone
  • iPhone series
  • Android terminal
Tablet
  • iPad series
  • Android terminal
  • Windows terminal
PC
  • Windows-based machine
  • Mac OS-based machine
Game apparatus
  • Nintendo Switch
  • 3DS/DS series
  • PSP series
  • PS3/4
  • Wii/Wii U
  • Xbox360
Printer
  • Canon
  • EPSON
  • HP
  • BROTHER
Smart speaker
  • Google/Google home
  • LINE/Clova WAVE
  • ※Version of the OS, please identify the product page "correspondence OS".
  • ※The latest correspondence situation, please identify correspondence table page.
