Product information

PC change over device for keyboard mouse

KM-A22BBK

PC reshuffling device for mouse key board which can share one set of keyboard and mouse in two PC simple change over just to push Switch at hand.

PC change over device (KM-A22BBK) for keyboard mouse
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
PC change over device (KM-A22BBK) for keyboard mouse KM-A22BBK
4953103217867
4,700 yen (tax-excluded)

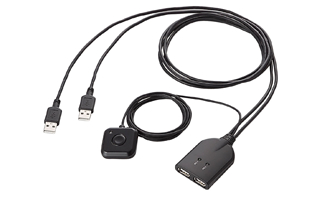

Product photo (※ to enlarge the images, please click)

Features of product

※Customer that introduction is examined in corporation recommends inspection in environment of customer before the purchase.

We can use two PCs with one set of USB apparatus

It is two PC reshuffling devices for keyboard mouse which can share USB apparatuses such as one set of keyboard mouse in PC.

Compact type of one cable type

As it is compact type of one cable type, we can install clearly.

Compact type of one cable type available with two PCs with one set of USB apparatus

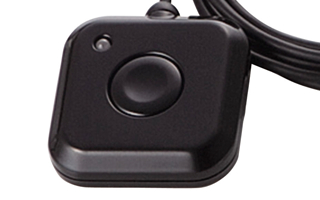

Change over is easily possible in hand Switch

Change over is easily possible in hand Switch

Change over is easily possible in hand Switch which we can install at hand.

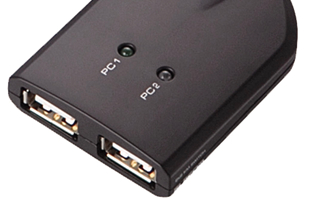

With LED lamp knowing the change over point at glance

With LED lamp knowing the change over point at glance

Both body and hand Switch are accompanied by LED lamp knowing the change over point at glance.

We are connected and are available immediately

As installation of driver is unnecessary, we are connected and are available immediately.

Multifunctional mouse key board is available, too

Even multifunctional mouse mounted with pulse tilt wheel function and multi-button, multifunctional keyboard of the hot key deployment are available.

Magnet sheet is attached

Magnet sheet which can fix the body and hand Switch to metal part is attached.

Note PC is available for change over, too

As connection to the PC side is USB connection, note PC which does not have PS/2 port is reshuffling possibility.

Specifications of product

PC change over device (KM-A22BBK) for keyboard mouse
KM-A22BBK

PC reshuffling device for mouse key board which can share one set of keyboard and mouse in two PC simple change over just to push Switch at hand.

Supported devices (the OS: Windows) Windows 10/8.1/8/7/Vista (PC/AT compatibles that ... SP1)/XP(SP1 - SP3)/2000(SP4) works
Supported devices (the OS: Mac) PowerPC machine that Interl Mac machines that Mac OS X (after 10.3) /macOS (after 10.12) works, Mac OS X (10.0-10.5) work ※In the case of USB 2.0 movement
Corresponding peripheral device USB apparatus: USB 2.0 or USB apparatus for USB1.1
Interface (the PC side) USBA (male) X 2
Interface (the peripheral device side) USBA (female) X 2
Attached cable (for PC) Specifications (1) Unavailable
Attached cable (for PC) Specifications (2) Unavailable
Change over method Hand Switch
Change over sound None
Power supply Bus powered
Voltage rating 5V
Maximum power consumption 0.5W
Can supply; electric current Total ports less than 400mA
Dimensions: The change over device body: 42mm in width X 68mm in depth X 13mm in height ※We switch hand without including cable: 36mm in width X 60mm in depth X 12mm in height ※We do not include cable
Cable length Change over device body - PC: 1.2m, change over device body - hand Switch: 1.8m
Weight 88 g
Accessories: Magnet sheet (for hand Switch), magnet sheet (for the body), Manual
Term of a guarantee Six months

※ Specifications may change without a notice, thank you for your understanding.
