Product information

USB3.0 Giga-bit LAN adapter


USB3.0 Giga-bit LAN adapter that we only put and use, and high-speed network communication is possible most suitable for thin PC without wired LAN port.

USB3.0 Giga-bit LAN adapter (EDC-GUA3-B)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
USB3.0 Giga-bit LAN adapter (EDC-GUA3-B) EDC-GUA3-B
< Black > 2,420 yen (tax-excluded)
USB3.0 Giga-bit LAN adapter (EDC-GUA3-W) EDC-GUA3-W
< White > 2,420 yen (tax-excluded)

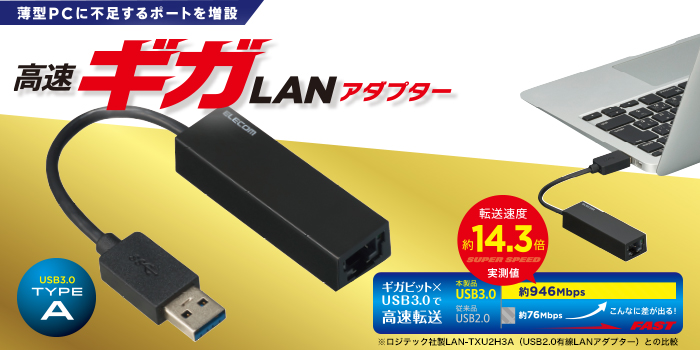

Product photo (※ to enlarge the images, please click)

Features of product

USB3.0 Giga-bit LAN adapter which is most suitable for thin PC without wired LAN port

It is most suitable for thin PC without wired LAN port and is USB3.0 Giga-bit LAN adapter which is available for high-speed network communication.

  • EDC-GUA3-B
    < Black >

  • EDC-GUA3-W
    < White >

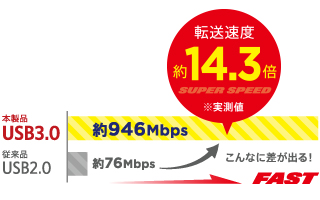

Transfer higher-speed than old product at speed of 14.3 times

High speed transfer can make data which we downloaded in comparison with old product (LAN-TXU2H3A made in Logitec Corporation) mounted with USB 2.0 by combination of gigabit communication and PC joint USB3.0 using giga wired LAN adapter into at speed of 14.3 times (actual value).

[measurement environment]
Wired LAN adapter (This product): EDC-GUA3-B or EDC-GUA3H-B
Wired LAN adapter (conventional product): LAN-TXU2H3A (USB 2.0 wired LAN adapter made in Logitec Corporation)
PC 1(Client PC): ASUS K556UAK Windows10 HOME/ Core i7 2.7GHz, memory: 8GB
PC 2(Server PC): ASUS GL552V Windows10 HOME /CPU Core i5 2.3GHz, memory: 8GB

[method for measurement]
[PC 1] -[USB3.0 port] -----(This product)-----[LAN port] [PC 2]
We measure PC 1, communication three times of two ken of PC in SW IxChariot ver 7.30 sp3 and calculate average.
(the April, 2017 we investigation)

Wired LAN as for the net play more comfortably!

Connection of the Internet in wireless LAN is very convenient, but we are affected by in time of communication environment and connection in wireless LAN in comparison with wired LAN, and time lag may occur while we face.

By real-time online games that momentary communication controls victory or defeat, wired LAN connection that is available for stable communication is recommended.

MAC address changer

Even environment where only MAC addresses registered beforehand such as offices can communicate by using software "MAC address changer" which can change MAC address of This product can use This product. (only Windows supports)

Selectable installation method

By attached CD-ROM or WEB downloading, we install driver software and can use Windows7, Mac OS X 10.10-11, macOS 10.12-13.

It is available without installing driver in Windows 10S/10/8.1 just to be connected to Universal Serial Bus port.

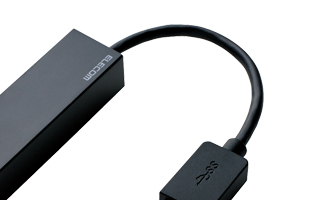

9cm cable which is convenient for carrying around

The length of the cable is 9cm that is convenient for carrying around.

EU RoHS order conformity

EU RoHS order is order that EU (European Union) decided about use restrictions of specific harmful object about electricity, electronic equipment. It limited lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr6+), poly biphenyl (PBB) bromide, six kinds of use of polybrominated diphenyl ether (PBDE), and was taken effect in EU in July, 2006.

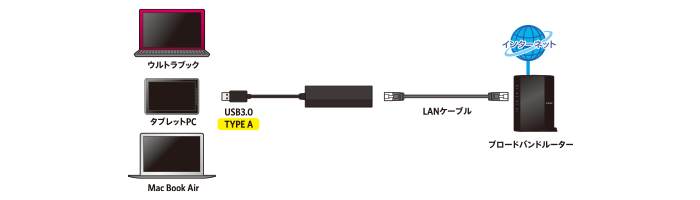

Connection Diagram

Specifications of product

USB3.0 Giga-bit LAN adapter (EDC-GUA3-B)

USB3.0 Giga-bit LAN adapter that we only put and use, and high-speed network communication is possible most suitable for thin PC without wired LAN port.

Supported devices: Mac which was equipped with CPU made in Windows PC which carried Universal Serial Bus port (Type-A), Intel Corporation
Supported OS Windows 10S(32bit/64bit) / 10(32bit/64bit) / 8.1(32bit/64bit) / 7(32bit/64bit)(SP1), macOS 10.13/10.12, Mac OS X 10.11/10.10 ※Windows10S / 10 / 8.1 gives a driverless response
Wired standard IEEE 802 .3(10BASE-T) / IEEE 802 .3u (100BASE-TX) / IEEE 802 .3ab(1000BASE-T) / IEEE 802 .3x(Flow Control)
Wired connector RJ-45 (Auto MDI/MDI-X) X 1 port, Auto-Negotiation correspondence
Cable transmission speed (theoretical value) 10/100/1000Mbps
Access method CSMA/CD
Correspondence protocol IPv4, IPv6
USB Upstream Port standard USB3.0 / 2.0 / 1.1 ※We recommend connection in USB3.0 to realize enough speed of gigabit.
USB Upstream Port interface Type-A (male) X 1 port
USB Upstream Port access speed (theoretical value) USB3.0 supermarket speed / 5Gbps, USB 2.0 High Speed / 480Mbps, USB1.1 full speed / 12Mbps
Other functions Jumbo frame
Input Voltage DC 5V
Power consumption 0.9W
Consumption electric current Approximately 180mA
Power supply method USB Bus powered
Dimensions (width X D X H) (W)Approximately 67* (D) approximately 20* (H) approximately 15mm (except cable part)
The USB cable head Approximately 9cm (except connector part)
Weight : Approximately 26 g
Housing materials (color) Plastic (Black)
Operating environment Temperature: 0-40 degrees Celsius, humidity: Less than 85% (but thing without dew condensation)
Various acquisition standards VCCI class B
Laws and ordinances correspondence EU RoHS order conformity
Term of a guarantee One year
Accessories: One wired LAN adapter body, Manual, CD one piece
Corresponding software MAC address changer

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
