Product information

11ac 433Mbps giga-adaptive portable router

WRH-733GBK

It is wireless LAN (Wi-Fi) router for Portable corresponding to super-high-speed standard IEEE 802 .11ac 433Mbps (theoretical value) of the new next generation. Wired port supports Gigabit, and is the world's smallest class; as for the carrying around easily. We can use speed of high-speed optical line (giga) service in both Wireless and Wired to the maximum.

11ac 433Mbps giga-adaptive portable router (WRH-733GBK)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
11ac 433Mbps giga-adaptive portable router (WRH-733GBK) WRH-733GBK
4953103442337
IEEE 802 .11ac: 433Mbps (theoretical value) 7,680 yen (tax-excluded)
11ac 433Mbps giga-adaptive portable router (WRH-733GWH) WRH-733GWH
4953103442344
IEEE 802 .11ac: 433Mbps (theoretical value) 7,680 yen (tax-excluded) It is limited to stock

Product photo (※ to enlarge the images, please click)

Features of product

High speed Wi-Fi gigabit router WRH-733GBK eresapo

Conventionally, realization new generation standard "11ac" adopts super-high-speed communication of approximately 2.8 times of standard

It supports "11ac" of the latest standard. We largely exceed conventional Wireless speed and realize communication comfortable more than before. You can use the Internet comfortably even if you connect several Wi-Fi apparatuses. In addition, we can enjoy higher-speed communication by using in combination with latest smartphone and tablet corresponding to 11ac.
Because Wired port (the WAN side) supports Gigabit, we can use speed of high speed optical line (giga) service in both Wireless and Wired to the maximum.

11ac

New generation standard "11ac" which realizes comfortable communication

11ac

"11ac" is new generation standard to realize comfortable communication. Super-high-speed Wi-Fi communication is enabled in house. Furthermore, up, several apparatuses largely use at the same time (as for conventional standard 11n/a/g/b deployment apparatus), and amount of information that we can transfer is allowed.
※The speed is a value of standard, and the actual speed depends on the environment.

Because it is dual band, we are connected in various ways

High speed Wi-Fi communication that is comfortable by dual band correspondence of wireless LAN 11n/g standard of 2.4GHz band and 11n/a standard of 5GHz zone resisting electric wave interference is available.

Dual band

Wireless LAN easily high-speed even as for the business trips such as hotels

We bring into hotel providing Internet service by wired LAN and are only connected to wired LAN terminal installed in each room, and the Internet by Wi-Fi (wireless LAN) communication becomes available easily.

The Gigabit WAN port deployment!

Hotels introducing gigabit line into guest room increase rapidly recently! More comfortable Internet connection is enabled, and work in accommodations progresses, too.

※Depending on hotel, certification work by Web browser may be necessary.

※Please use attached AC adapter for feeding separately.
※We assume use in Japan and are designed. Product guarantee is effective only in Japan.

We connect at the same time and are comfortable! 5GHz and 2.4GHz are usable at the same time

As both can use 5Ghz and 2.4GHz, all apparatuses are available in one comfortably as we can connect the latest apparatus to conventional model at 2.4GHz at comfortable 5GHz.

The function cordless handset mode deployment not to be only router function, and to be usable

We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.

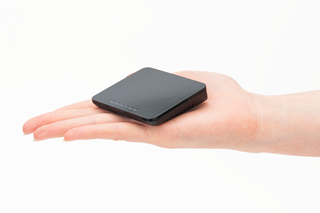

With compact which does not interfere even when going out as for the carrying around easily!

As the product body is very compact, to carry; easily! We enter inside pocket of bag completely.

We utilize merit of wired LAN and wireless LAN! The use simultaneous with Wi-Fi is possible by the LAN port deployment!

Wired LAN port is equipped with, and Wi-Fi and the simultaneous use with Wired are possible.

The use simultaneous with Wi-Fi is possible by the LAN port deployment!

Video, book, music distribution service U-NEXT largest in Japan is free for 31 days

We can enjoy movie, drama animation in every radio equipment. It is free now for 31 days!

http://unext.jp/lp/elecom

Setting simple by exclusive application even as for preparation smartphone / tablet!

We only read bundled QR code, and input of troublesome encrypting key provides unnecessary simple setting application. Besides, it is equipped with WPS function that can set PC and various Mobile game consoles and Wi-Fi just to push WPS button of This product.
In addition, we cope with simple setting in Windows PC using CD-ROM. We can have you set even beginner with various apparatuses.

Setting simple even as for smartphone / tablet application

It is prohibition privacy separator by communication between wireless personal computer

We can prohibit access (access to joint ownership folders) between wireless personal computer connecting to Wireless main phone when we use privacy separator function. When we plurally use Wireless main phone, for security protection of user, we recommend that we use privacy separator function.

The multi-SSID function deployment to be usable with various apparatuses with keeping high security

It is function that can set plural SSID for one Fixed Wireless Access point.

We can use PC, tablet, smartphone and home-use game console devices in different encryption system and authentic method at the same time.

Dual band

Specifications

□Wireless LAN part
Wireless LAN standard

IEEE 802 .11ac
IEEE 802 .11n
IEEE 802 .11a
IEEE 802 .11b
.11 g of IEEE 802

Frequency (center frequency) 2.4GHz (2,412-2,472MHz)
5GHz (5,150-5,725MHz)
Channel 2.4GHz band: 1 - 13ch
5GHz zone:
36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140ch
Basic transmission scheme IEEE 802 .11ac: MIMO-OFDM method
IEEE 802 .11n: MIMO-OFDM method
.11 g of IEEE 802: OFDM method
IEEE 802 .11b: DS-SS method
IEEE 802 .11a: OFDM method
Line speed (theoretical value) IEEE 802 .11ac: Up to 433Mbps
IEEE 802 .11a: Up to 54Mbps
IEEE 802 .11n(5GHz): Up to 150Mbps
IEEE 802 .11n(2.4GHz): Up to 300Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
Antenna 2.4GHz: Transmission and reception x2 book
5GHz :Transmission and reception x1 book
Access method Infrastructure mode
Security SSID stealth bomber, multi-SSID (two maximum enrollment),
Access control (MAC address filtering),
SSID separator (AP mode time invalidity),
Privacy separator
Setting method WPS1.0

※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.

□Wired LAN part
Correspondence standard WAN: IEEE 802 .3ac(1000Base-T) / IEEE 802 .3u(100BASE-TX)/ IEEE 802 .3(10BASE-T)
LAN: IEEE 802 .3u(100BASE-TX)/ IEEE 802 .3(10BASE-T)
Terminal WAN: RJ-45 X 1 port
LAN: RJ-45 X 1 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
□Router part
Equipment mode Router mode (initial value), access point mode,
Wireless cordless handset (converter) mode
Correspondence protocol TCP/IP (IPv4)
WAN setting DHCP / fixation IP / PPPoE (1 session)
LAN setting DHCP server (effective / invalidity), fixed IP address
VPN connection IPsec pass-through, PPTP pass-through, L2TP pass-through
□Other Specifications
Power supply connector USB(microB)
Input voltage range AC100V ±10% 50/60Hz
Power consumption 4.67W
Dimensions (width X D X H) About width 68.9 X D 64 X 14.5mm in height
Weight : Approximately 35 g (we do not include AC adapter)
Term of a guarantee One year
Accessories: One wireless LAN router, AC adapter one, various Manual, setting information sheet one piece, trial version serial number card one piece special for Icarus Mobile security 90 days, U-NEXT catalogue one piece
※We do not bundle LAN cable.

The correspondence OS (PC)

  • ※Mac OS X is limited to use in plane mounted with CPU made by Intel.
  • ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
  • ※The latest correspondence situation, please identify correspondence table page.

Supported devices:

Smartphone
  • iPhone series
  • Android terminal
Tablet
  • iPad series
  • Android terminal
  • Windows terminal
PC
  • Windows-based machine
  • Mac OS-based machine
Game apparatus
  • 3DS/DS series
  • PSP series
  • PS3/4
  • Wii/Wii U
  • Xbox360
Printer
  • Canon
  • EPSON
  • HP
  • BROTHER

※The latest correspondence situation, please identify correspondence table page.
