11ac/a 11n/b/g Portable router
It is portable wireless LAN router corresponding to latest super-high-speed standard 802.11ac 433Mbps (theoretical value). Super-high-speed communication is possible by combination with the latest smartphone. The product body (width approximately 65* D approximately 35* H 20.5 about mm) is very compact, too and does not choose place.
Model number / lineup
|Model number /JANCD||Features||Standard price||Remarks|
|< Black > 11ac 433Mbps (theoretical value)||6,140 yen (tax-excluded)||It is limited to stock|
|< White > 11ac 433Mbps (theoretical value)||6,140 yen (tax-excluded)||It is limited to stock|
Features of product
Conventionally, it supports realization new generation standard "11ac" by super-high-speed communication of approximately 5.8 times of standard
It supports "11ac" of the latest standard. We largely exceed conventional Wireless speed and realize communication comfortable more than before. You can use the Internet comfortably even if you connect several Wi-Fi apparatuses. In addition, we can enjoy higher-speed communication by using in combination with latest smartphone and tablet corresponding to 11ac.

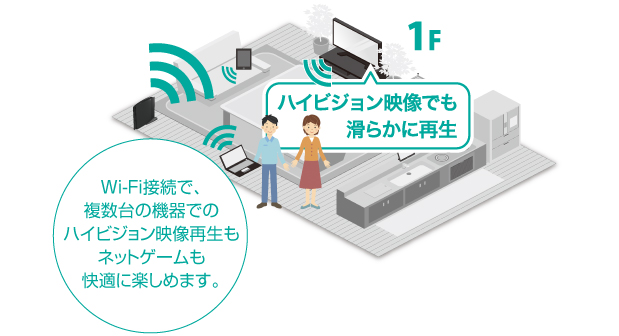

New generation standard 11ac which realizes giga wireless LAN
By new generation standard 11ac corresponding to 5GHz communication, is strong in electric wave interference in PC of the use, in comparison with conventional standard approximately 5.8 times ※We realize super-high-speed communication of this.
※Comparison in standard maximum.
※It is speed comparison between LTE line (75Mbps) of au iPhone5 and wireless LAN connection 433Mbps by theoretical maximum, and real speed changes by environment.
Because it is dual band, we are connected in various ways
High speed Wi-Fi communication that is comfortable by dual band correspondence of wireless LAN 11n/g standard of 2.4GHz band and 11n/a standard of 5GHz zone resisting electric wave interference is available.
Wireless LAN easily high-speed even as for the business trips such as hotels
※Depending on hotel, certification work by Web browser may be necessary.
※Please use attached AC adapter for feeding separately.
※We assume use in Japan and are designed. Product guarantee is effective only in Japan.
As both can use 5Ghz and 2.4GHz, all apparatuses are available in one comfortably as we can connect the latest apparatus to conventional model at 2.4GHz at comfortable 5GHz.
We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.

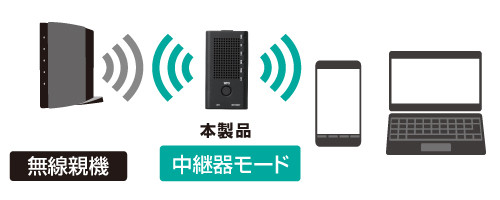

Place where electric wave of Wi-Fi is hard to reach by changing This product to repeater mode can use the Internet comfortably.

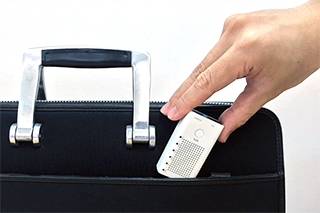

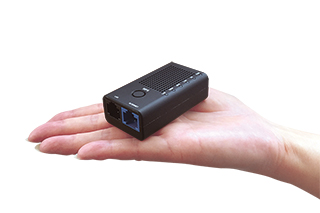

As the product body is very compact, to carry; easily! We enter inside pocket of bag completely.
We utilize merit of wired LAN and wireless LAN! The use simultaneous with Wi-Fi is possible by the LAN port deployment!
Wired LAN port is equipped with, and Wi-Fi and the simultaneous use with Wired are possible.
We only read bundled QR code, and input of troublesome encrypting key provides unnecessary simple setting application. Besides, it is equipped with WPS function that can set PC and various Mobile game consoles and Wi-Fi just to push WPS button of This product.
In addition, we cope with simple setting in Windows PC using CD-ROM. We can have you set even beginner with various apparatuses.
We can prohibit access (access to joint ownership folders) between wireless personal computer connecting to Wireless main phone when we use privacy separator function. When we plurally use Wireless main phone, for security protection of user, we recommend that we use privacy separator function.

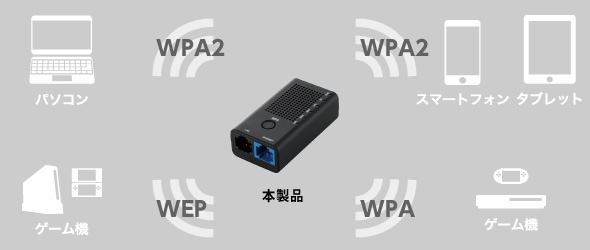

It is function that can set plural SSID for one Fixed Wireless Access point.
We can use PC, tablet, smartphone and home-use game console devices in different encryption system and authentic method at the same time.
|Wireless LAN standard||
IEEE 802 .11ac
|Frequency (center frequency)||2.4GHz (2,412-2,472MHz)
|Channel||2.4GHz band: 1 - 13ch
[W52]36, 40, 44, 48ch
[W53]52, 56, 60, 64ch
|Basic transmission scheme||IEEE 802 .11ac: OFDM method
IEEE 802 .11n: OFDM method
.11 g of IEEE 802: OFDM method
IEEE 802 .11b: DS-SS method
IEEE 802 .11a: OFDM method
|Line speed (theoretical value)||IEEE 802 .11ac: Up to 433Mbps
IEEE 802 .11n: Up to 150Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
IEEE 802 .11a: Up to 54Mbps
|Antenna||2.4GHz: Transmission and reception x1 book
5GHz ：Transmission and reception x1 book
|Encryption system||Invalidity (there is no coding), WEP(64bit/128bit),
|Security|| SSID stealth bomber, multi-SSID (two maximum enrollment),
Access control (MAC address filtering),
SSID separator (AP mode time invalidity),
※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.
|Correspondence standard||IEEE 802 .3u (100BASE-TX)
IEEE 802 .3(10BASE-T)
|Terminal||WAN: RJ-45 X 1 port
LAN: RJ-45 X 1 port
|Equipment mode||Router mode (initial value), access point mode,
Wireless cordless handset (converter) mode, broadcast mode
|Correspondence protocol||TCP/IP (IPv4)|
|WAN setting||DHCP / fixation IP / PPPoE (1 session)|
|LAN setting||DHCP server, fixed IP address|
|VPN connection||IPsec pass-through, PPTP pass-through, L2TP pass-through
※In Specifications, we cannot invalidate.
|Power supply connector||USB(microB)|
|Input power supply||DC5V|
|Dimensions (width X D X H)||About width 35 X D 65 X 20.5mm in height|
|Weight :||Approximately 45 g (we do not include AC adapter)|
|Term of a guarantee||One year|
|Accessories:||One wireless LAN router, AC adapter one, Manual two pieces, multilingual Manual (/ Korea / Portugal out of British /) one piece, IKARUS trial version serial card one piece, U-NEXT catalogue
※We do not bundle LAN cable.
※The latest correspondence situation, please identify correspondence table page.
