With 300MbpsWi-Fi Portable router AC Adapter
Pocket size that attendant of business trip can carry cutely. Wi-Fi portableness router that we are only connected to wired LAN such as hotels, and high-speed Wi-Fi connection of "up to 300Mbps ※" is possible. ※Theoretical value
Model number / lineup
|Model number /JANCD||Features||Standard price||Remarks|
|< Black > 11bgn 300Mbps (theoretical value)||3,570 yen (tax-excluded)|
|< White > 11bgn 300Mbps (theoretical value)||3,570 yen (tax-excluded)|
Features of product
Approximately 4 times of LTE line! 11ngb 300Mbps correspondence
As they cope with approximately 4 times of LTE line, high-speed Wi-Fi communication of 11ngb300Mbps becoming the speed of approximately 32 times of 3G line, reproduction of video, music and development of attached file email belonging to are comfortable. ※It is speed comparison between LTE line (75Mbps) of au iPhone5 and 3G line (9.2Mbps) and Wi-Fi connection 300Mbps by theoretical maximum, and real speed changes by environment.
Setting setting is possible easily at hotels
We bring into hotel providing Internet service by wired LAN and are only connected to wired LAN terminal installed in each room, and the Internet by Wi-Fi (wireless LAN) communication becomes available easily.
※Depending on hotel, certification work by Web browser may be necessary.
※Please use attached AC adapter for feeding separately.
※We assume use in Japan and are designed. Product guarantee is effective only in Japan.
The convenient PPPoE function deployment
This product is equipped with not only DHCP function that we can set in whereabouts but also PPPoE function to set at home.
It is item which can be useful of the part of two per person.
It is usable with Wireless cordless handset mode
We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.
It is usable with repeater mode
Place where electric wave of Wi-Fi is hard to reach by changing This product to repeater mode can use the Internet comfortably.

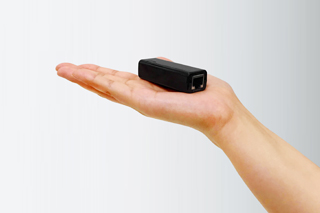

It is convenient for carrying around in compact Dimensions!
As the product body is very compact, to carry; easily! We enter breast pocket and inside pocket of suit completely.
Setting simple by exclusive application
We only read bundled QR code, and input of troublesome encrypting key provides unnecessary simple setting application.
Setup is possible easily
We can set up setting of difficult router easily. After having accessed router, we only input necessary matter according to instructions of screen, and setting is completed.
Reliable connection! We can prohibit communication between PC.
We can prohibit access (access to joint ownership folders) between wireless personal computer connecting to Wireless main phone when we use privacy separator function. When we plurally use Wireless main phone, for security protection of user, we recommend that we use privacy separator function.
Model attached to AC adapter
It is model attached to exclusive AC adapter. Was stable by connecting AC adapter, supplying power is possible.
|Wireless LAN standard||IEEE 802 .11n/g/b|
|Frequency Range:||2.4GHz (2,412-2,472MHz)|
|Channel||1 - 13ch|
|Basic transmission scheme||11n: MIMO-OFDM method
11 g: OFDM method
11b: DS-SS method
|Data transmission rate (theoretical value)||
11n: Up to 300Mbps (40MHz time *1)
11 g: Up to 54Mbps
11b: Up to 11Mbps
|Antenna system||Two built-in antennas (two transmission, reception two)|
|Encryption system||Invalidity (there is no code), WEP(64bit/128bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP), WPA/WPA2, Mixed(TKIP/AES)|
SSID (stealth bomber)
Multi-SSID (two maximum enrollment)
SSID separator (AP mode time invalidity)
Access control (MAC address filtering)
|WPS (button /PIN)|
※It is 20MHz (150Mbps) in the early period of 1. When you use at 300Mbps, please setting-change to 40MHz
|Correspondence standard||IEEE 802 .3u (100BASE-TX) / IEEE 802 .3 (10BASE-T)|
|<Connector>||WAN: RJ-45x1 port|
|Equipment mode||Router mode (initial value)
Access point mode
Wireless cordless handset (converter) mode
|Routing-response protocol||TCP/IP (IPv4)|
|Internet (WAN) Connection method||We have access to the PPPoE certification (1 session)
We have access to the IP address automatic acquisition (DHCP client)
We have access to IP address fixation
|LAN Connection method setting||Fixed IP address (manual setting)|
|VPN connection||IPSec pass-through, PPTP pass-through, L2TP pass-through|
|Power supply connector form||USB (microB)|
|Input power supply||DC5V, 0.5A|
|Power consumption (rating)||Approximately 2.4W (maximum)|
|Operating environment||VCCI (class B)|
|Various acquisition standards||Approximately 2.4W (maximum)|
|Dimensions (width X D X H)||Approximately 24mm in width X 65mm in depth X 18mm in height|
|Weight :||Approximately 20 g (only as for the body)|
※We do not cope with IPv6 communication and NGN IPv4 service (service information site or virus clear) of FLET'S light next. In addition, PPPoE multi-session function and port transfer, DMZ, DDNS function are not equipped, but general Internet connection, the use by Wi-Fi game do not have any problem.
|Main product structure||The product body: One, AC adapter: One, Manual: Two pieces, foreign language Manual (/ Korea / Portugal out of British /): One piece, setting information sheet: Trial version serial number special for one piece, Icarus Mobile security 90 days
※We do not bundle LAN cable.
※The latest correspondence situation, please identify correspondence table page.
