Product information

11b/g/n 300Mbps wireless LAN router

WRC-300FEBK-S

Communication at 300Mbps in speed that we can set anyone immediately without using CD-ROM and application, and smartphone communication is comfortable is possibility. Wireless LAN router of entry model that it is most suitable for one living, and can communicate plural terminals at the same time, and is reliable for beginner.

11b/g/n 300Mbps wireless LAN router (WRC-300FEBK-S)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
11b/g/n 300Mbps wireless LAN router (WRC-300FEBK-S) WRC-300FEBK-S
4953103294097
11b/g/n 300Mbps wireless LAN router 3,580 yen (tax-excluded)

Product photo (※ to enlarge the images, please click)

Features of product

Both new generation super-high-speed wireless 4KTV and net digital contents provide video are considerably comfortable!

※It is maximum in 1 theory and is not thing indicating real Wireless speed.

※We assume the use within 3 terminals per 2 one.

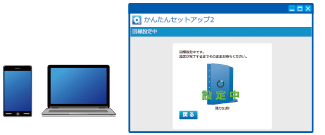

We can set anyone immediately without using CD-ROM and application! In smartphone and PC "simple setup 2"

We have access to automatic Wi-Fi in WPS

We can easily set in smartphone and PC simple substance from the WEB browser top without setting up installation and CD-ROM drive of application.
We push WPS button of connected to terminal followed by connection method between router, terminal adopts WPS setting of industry-wide standard that we only push WPS button on the router side and can connect.

Digital cross connecting is possible from WEB browser of smartphone and PC, too

When we set by manual operation, we choose applicable SSID and can be connected just to input encrypting key.
We input Wireless setting information of mention into bundled "brief setup seat" (initial value). We perform setting from the browser top. For coherent setting method not to choose kind of terminal as, simple setting is possible in anyone immediately.

As manager password to manage setting of router can set customer on browser after the connection between router, terminal freely, security side is reliable, too. Because password lists in Sticker bundled with and can keep, we do not have to worry to lose.

High-speed comfortable wireless LAN "11n" correspondence

"11n" which is usable in wide environment

It supports IEEE 802 .11n/g/b 300Mbps (theoretical value) spreading most at home. Smartphone tablet, PC, TV is available for every wireless LAN apparatus and connection.

Rich function usable usefully full of functions not to be only router function, and to be usable

It is usable with Wireless cordless handset mode

We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.

It is usable with repeater mode

Place where electric wave of Wi-Fi is hard to reach by changing This product to repeater mode can use the Internet comfortably.

The last child net timer is largely improvement of function! Child net timer 2

Child net timer 2

It is equipped with "child net timer 2" which can restrict connect time of Mobile game console and smartphone connecting with the Internet by Wi-Fi function. We protect child from long-time game and Internet.
It is necessary to purchase license on the use by "WEB site filter function" separately.

Child net timer

※It is with router mode, and this function is available.

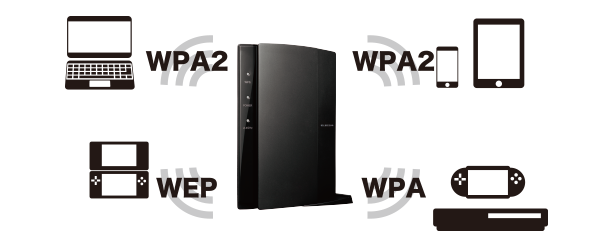

The multi-SSID function deployment to be usable with various apparatuses with keeping high security

We can set plural SSID

It is function that can set plural SSID in one wireless LAN access point. We connect with various apparatuses with keeping high security.

Multi-SSID

Specifications

□Wireless LAN part
Wireless LAN standard IEEE 802 .11n conformity
IEEE 802 .11 g conformity
IEEE 802 .11b conformity
Frequency Range: 2.4GHz band: 2,400-2,484MHz
Channel 2.4GHz band: 1 - 13ch
Basic transmission scheme IEEE 802 .11n: MIMO-OFDM
.11 g of IEEE 802: OFDM
IEEE 802 .11b: DS-SS
Line speed (theoretical value) IEEE 802 .11n: Up to 300Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
Antenna Two built-in antennas
・2.4GHz band: Two transmission and reception
Security WPA2-PSK(AES)
WPA-PSK(TKIP)
WEP(64bit/128bit)
Access method Infrastructure
Multi-SSID Correspondence (2.4GHz: to up to three)
Setting method WPS
Separator function Privacy separator / SSID separator correspondence (it functions for guest SSID)
Other Wireless functions SSID stealth bomber setting / MAC address filtering / automatic channel setting

※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.

□Wired LAN part
LAN
Interface
Wired LAN standard IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 4 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
WAN
Interface
Wired LAN standard IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 1 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
Hardware NAT Non-compliant
□Router part
Equipment mode Router mode
Access point mode
Repeater mode
Cordless handset mode
Use protocol TCP/IP (IPv6/IPv4)
WAN setting DHCP / fixation IP address / PPPoE (1 session)
LAN setting DHCP server / fixation IP address
Other functions / IPv6 pass-through-adaptive / VPN pass-through-adaptive / DMZ correspondence for UPnP
□Other Specifications
Power supply connector DC Jack
Input Voltage AC100 - 240V ±10% 50/60Hz
Power saving function LED electric power saving
Power consumption Approximately 3.6W
Operating environment Temperature: 0 degrees Celsius - 40 degrees Celsius humidity: 10% - 85% (but thing without dew condensation)
Dimensions (width X D X H) (W)Approximately 130.0* (D) approximately 26.0* (H) approximately 182.5mm (only as for the body)
Weight : Approximately 230 g (only as for the body)
Various acquisition standards VCCI Class B / TELEC / PSE
Term of a guarantee One year
Incidental service The website filter function deployment (option sold separately)
Accessories: One wireless LAN router body, stands one, exclusive AC adapter one, LAN cable (approximately 1m) one, various Manual, simple setup seat one piece, guidance one piece of Web site filter license

Supported OS

  • ※Mac OS X is limited to use in plane mounted with CPU made by Intel.
  • ※We cope after Windows Vista SP1.
  • ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
  • ※The latest correspondence situation, please identify correspondence table page.

Supported devices:

Smartphone
  • iPhone series
  • Android terminal
Tablet
  • iPad series
  • Android terminal
  • Windows terminal
PC
  • Windows-based machine
  • Mac OS-based machine
Game apparatus
  • Nintendo Switch
  • 3DS/DS series
  • PSP series
  • PS3/4
  • Wii/Wii U
  • Xbox360
Printer
  • Canon
  • EPSON
  • HP
  • BROTHER
  • ※Version of the OS, please identify the product page "correspondence OS".
  • ※The latest correspondence situation, please identify correspondence table page.
