Product information

11ac 1733+800Mbps wireless LAN gigabit router

WRC-2533GHBK2-T

Super-high-speed wireless LAN gigabit router which was equipped with security technology of Trend Micro Corporation of industry leader class. In addition to smartphone and PC via in-home network, we protect Network household appliances such as TV and air-conditioner, Network camera from menace. You shine and wiring shines by wireless connection comfortably and, in TV(4K) operation check finished, can enjoy the seeing and hearing of TV.

11ac 1733+800Mbps wireless LAN gigabit router (WRC-2533GHBK2-T)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
11ac 1733+800Mbps wireless LAN gigabit router (WRC-2533GHBK2-T) WRC-2533GHBK2-T
4953103290006
11ac 1733+800Mbps wireless LAN gigabit router 16,690 yen (tax-excluded)

Product photo (※ to enlarge the images, please click)

Features of product

※1: : It is theoretical maximum and is not thing indicating real Wireless speed. It is necessary for cordless handset to support 256QAM communication as for the communication at 800Mbps.

※2: : We assume the use within 3 terminals per person.

※3 : This function works only with router mode. It becomes invalid with initial value. In addition, it is not thing which guarantees malicious attack absolute effect. Please use after checking "permission to use Trend Micro book".

※ It becomes service until date when we announced for up to five years. But it may not be over the end of February, 2024.

※ TREND MICRO and Trend Micro Smart Home Network are registered trademarks of Trend Micro Inc.

Smart TV is guarded by menaces such as viruses! Introduction, TV of security capability router with

[ELECOM] Introduction, TV of security capability router with

Convenient Smart TV which leads to the Internet. In fact, we are threatened by viruses. But don't worry. Smart TV guards security capability router of ELECOM which was born in collaboration with Trend Micro Corporation with, too.

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

IoT product is guarded by menaces such as viruses! Introduction, IoT of security capability router with

[ELECOM] Introduction, IoT of security capability router with

Convenient IoT technology where home electric appliances lead to the Internet. In fact, we are threatened by viruses. But don't worry. IoT product guards security capability router of ELECOM which was born in collaboration with Trend Micro Corporation with, too.

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

The new generation security deployment of Trend Micro ™ technology to protect from menace

Conventionally, in addition to function, it is equipped with two kinds of block functions

By cooperation in business with Trend Micro Corporation of industry leader class, we add to conventional "vicious website block function" and prevent information leakage via C&C server by blocking defense for attack to aim at weakness newly and connection to C&C server.

In this way, we protect Network household appliances which security software such as TV and air-conditioner, Network camera cannot install from menace.

In addition, in PC and smartphone which security software has been already installed in, we protect network environment of customer from menace by double block of in-home network security technology equipped with to installed security software and this router.

We prevent leaks of personal information and confidential information via C&C server by any chance when we have already got at the time of case and connection that menace got into to terminal by blocking connection to C&C server.
We can choose "harmful web site measures" among 4 modes of less than primary schoolchild, junior high student, high school student, custom, and custom can choose web site genre to block by oneself.

※This function works only with router mode. It becomes invalid with initial value. In addition, it is not thing which guarantees malicious attack absolute effect. Please use after checking "permission to use Trend Micro book".

※It becomes service until date when we announced for up to five years. But it may not be over the end of February, 2024.

Setting simple by exclusive application even as for preparation smartphone / tablet application!

We only read bundled QR code, and input of troublesome encrypting key provides unnecessary simple setting application. Besides, it is equipped with WPS function that can set PC and various Mobile game consoles and Wi-Fi just to push WPS button of This product.
In addition, we cope with simple setting in Windows PC using CD-ROM. We can have you set even beginner with various apparatuses.

Setting simple even as for smartphone / tablet application

Setting simple even as for the simple CD bundling PC

Simple CD bundling

By brief setup tool recorded in attached CD-ROM, Internet connection setting is easily completed. In addition, we prepare for Manual which listed connection setting method for miscellaneousness including connection setting method of several setting method / of a lot of setting method / game console in Mac.
Of course "simple setup in Windows PC using conventional CD-ROM is possible, too".

※Windows10S non-supports brief setup tool. Please set from setting utility for Web browser.

※At the time of setting in PC using "brief setup tool" in bundling CD,
Using Wireless with a built-in PC Internet line in the case of DHCP line.

We shine, and TV connection in Wireless mounted with TV mode is comfortable, too

Even if IPv6 communication is more stable, and Wired connects TV by radio from the start by validating [we shine TV mode], we can enjoy contents such as videos comfortably.

TV connection in Wireless is comfortable, too

※This function is correspondence than firmware version V1.15.
※We shine, and TV mode is initial value "invalidity". You shall remain in effect, and please use.
※When we connect TV in Wireless, we recommend that we are connected in 5GHz zone.

"We shine and have been checked the operation of TV 4K" NTT purara

Of video distribution service "shine TV 4K" of NTT purara company have been checked the operation.

"We shine and have been checked the operation of TV 4K" NTT purara

The high sensitive built-in antenna (4 X 4) deployment that electric wave is hard to break off

The high sensitive built-in antenna (4 X 4) deployment

We are strong in noise and are equipped with built-in antenna (4 X 4) of independent high sensitivity in 5GHz zone, 2.4GHz band.

It is high speed communication with 4 X 4 Smart antenna

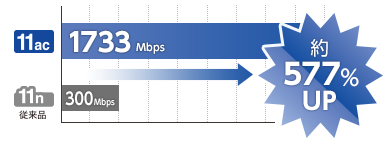

Conventionally, realization (※) new generation standard "11ac" adopts 577% of super-high-speed communication in comparison with standard

New generation standard "11ac" which realizes giga Wi-Fi

By new generation standard 11ac corresponding to general purpose high 5GHz communication, is strong for electric wave interference in PC of the use, in before in comparison with standard is realization by ultraspeed communication of approximately 577%. ※The speed is a value of standard, and the actual speed depends on the environment.

Because it is dual band, we are connected in various ways

High speed Wi-Fi communication that is comfortable by dual band correspondence of Wireless LAN11n/g/b standard of general purpose high 2.4GHz band and 11ac/n/a standard of 5GHz Zone resisting electric wave interference is available.

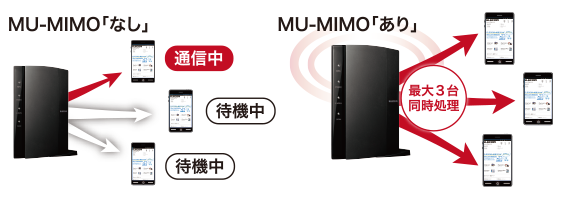

"MU-MIMO" which is fast even if plurally connected including even plurally fast smartphone

Up to three and concurrent communication, processing are possible

If the terminal side supports MU-MIMO by the MU-MIMO function deployment that can send separate data to plural terminals, up to three and concurrent communication, processing are possible.

※It is necessary for the connected smartphone side to support MU-MIMO.

As for the Wi-Fi router of ELECOM, this is great! (MU-MIMO)

We introduce "MU-MIMO" equipped with by wireless LAN router of ELECOM. As we communicate with plural terminals, speed becomes hard to decline even if we use Wi-Fi in whole family

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

Mounted with high-speed processing dual-core CPU with two brains!

We realize high-speed process in 2 cores

We reduce outbreak awaiting processing by performing internal processing in two cores at the same time and realize higher-speed communication.

As for the Wi-Fi router of ELECOM, this is great! (dual-core CPU)

We introduce "dual-core CPU" equipped with by wireless LAN router of ELECOM. As two core performs plural processes at the same time, communication speed improves

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

All port giga (1000Mbps) correspondence to make the most of giga optical line

It supports giga communication

Speed such as optical lines (giga service) that speedup advances is utilized to the full by video distribution

It is super-high-speed by the realization hardware NAT deployment at industry fastest 940Mbps

Because it is dual band, we are connected in various ways

We suppress packet L.A. and realize high-speed throughput by performing communication processing with hardware in comparison with communication processing by software. Because Wireless is available with maintaining high speed communication such as optical lines, it is most suitable for Wi-Fi connection such as smartphone. Throughput that was approximately 200-300Mbps in before is available for large speedup of a maximum of 940Mbps.

Rich function usable usefully full of functions not to be only router function, and to be usable

It is usable with Wireless cordless handset mode

We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.

It is usable with repeater mode

Place where electric wave of Wi-Fi is hard to reach by changing This product to repeater mode can use the Internet comfortably.

Stable communication beam forming Z high-speed in iPhone, smartphone

"Beam forming Z" where radio wave leads to

It is available comfortably at place where electric wave was hard to reach so far including place away from Wi-Fi and place with many obstacles. We send electric wave to place that goes, and is hard to be crowded of electric wave well.
We can anticipate enough speed up in not only iPhone but also conventional smartphone by original tuning.
※It is necessary for the connected smartphone side to support beam forming.

"Beam forming Z" where radio wave leads to

As for the Wi-Fi router of ELECOM, this is great! (beam forming Z)

We introduce "beam forming Z" equipped with by wireless LAN router of ELECOM. As we make radio wave in place that we aimed at, communication speed with far-off smartphone improves

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

Special feature: Beam forming Z

iPhone/ smartphone corresponding to beam forming Z arrives by stable communication well to “ distance! "“ Wi-Fi speedup! "

It supports iPhone / smartphone! Beam forming Z! Plural beams raise electric wave strength to far-off terminal!

The child net timer function deployment reliable as for mother

Child net timer

We set time for Internet connection of Wi-Fi Supported Devices and protect child from long-time game, Internet. Selectable with timer setting, two setting modes of schedule setting (we cannot choose at the same time)

※It is with router mode, and this function is available.

We update update automatic firmware in the latest firmware and are always functioned

We are reliable by automatic update

We automatically update in the latest firmware.

You can use router by the always latest program including addition and bug correction of new feature.

The multi-SSID function deployment to be usable with various apparatuses with keeping high security

We can set plural SSID

It is function that can set plural SSID in one wireless LAN access point. We connect with various apparatuses with keeping high security.

Multi-SSID

Specifications

□Wireless LAN part
Wireless LAN standard IEEE 802 .11ac conformity
IEEE 802 .11n conformity
IEEE 802 .11a conformity
IEEE 802 .11b conformity
IEEE 802 .11 g conformity
Frequency Range: 2.4GHz band: 2,400-2,484MHz
5.2GHz zone (W52): 5,150-5,250MHz
5.3GHz zone (W53): 5,250-5,350MHz
5.6GHz zone (W56): 5,470-5,725MHz
Channel 2.4GHz band: 1 - 13ch
5GHz zone (W52/W53/W56):
36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140ch
Basic transmission scheme IEEE 802 .11ac: MIMO-OFDM
IEEE 802 .11n: MIMO-OFDM
.11 g of IEEE 802: OFDM
IEEE 802 .11b: DS-SS
IEEE 802 .11a: OFDM
Line speed (theoretical value) IEEE 802 .11ac: Up to 1,733Mbps
IEEE 802 .11n: Up to 800Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
IEEE 802 .11a: Up to 54Mbps
Antenna Eight built-in antennas
・2.4GHz band: Four transmission and reception
・5GHz zone: Four transmission and reception
Security WPA2-PSK(AES)
WPA-PSK(TKIP)
WEP(64bit/128bit)
Access method Infrastructure
Multi-SSID Correspondence (2.4GHz: to up to three /5GHz: up to three, most big plan six)
Connection number Six recommendation (up to 18)
Setting method WPS
Separator function Privacy separator / SSID separator correspondence (it functions for multi-SSID)
Other Wireless functions SSID stealth bomber setting / MAC address filtering / automatic channel setting

※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.

□Wired LAN part
LAN
Interface
Wired LAN standard IEEE 802 .3ab(1000BASE-T) conformity
IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 4 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
WAN
Interface
Wired LAN standard IEEE 802 .3ab(1000BASE-T) conformity
IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 1 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
Hardware NAT Correspondence
□Router part
Equipment mode Router mode
Access point mode
Repeater mode
Cordless handset mode
Use protocol TCP/IP (IPv6/IPv4)
WAN setting DHCP / fixation IP address / PPPoE (2 sessions)
LAN setting DHCP server / fixation IP address
Other functions / IPv6 pass-through-adaptive / VPN pass-through-adaptive / DMZ correspondence for UPnP
□Other Specifications
Power supply connector DC Jack
Input Voltage AC100 - 240V ±10% 50/60Hz
Power saving function LED electric power saving
Operating environment Temperature: 0 degrees Celsius - 40 degrees Celsius humidity: 10% - 85% (but thing without dew condensation)
Power consumption Approximately 12.0W
Dimensions (width X D X H) (W)Approximately 130.0* (D) approximately 26.0* (H) approximately 182.5mm (only as for the body)
Weight : Approximately 260 g (only as for the body)
Various acquisition standards VCCI Class B / TELEC / PSE
Term of a guarantee One year
Incidental service The Trend Micro Corporation Smart Home Network function deployment (up to five years)
Accessories: One wireless LAN router body, stands one, exclusive AC adapter one, LAN cable (approximately 1m) one, various Manual, CD-ROM one piece, simple setup seat one piece, Trend Micro license seat one piece

Supported OS

  • ※Mac OS X is limited to use in plane mounted with CPU made by Intel.
  • ※We cope after Windows Vista SP1.
  • ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
  • ※Windows10S non-supports brief setup tool. Please set from setting utility for Web browser.
  • ※The latest correspondence situation, please identify correspondence table page.

Supported devices:

Smartphone
  • iPhone series
  • Android terminal
Tablet
  • iPad series
  • Android terminal
  • Windows terminal
PC
  • Windows-based machine
  • Mac OS-based machine
Game apparatus
  • Nintendo Switch
  • 3DS/DS series
  • PSP series
  • PS3/4
  • Wii/Wii U
  • Xbox360
Printer
  • Canon
  • EPSON
  • HP
  • BROTHER
Smart speaker
  • Google/Google home
  • LINE/Clova WAVE
  • ※Version of the OS, please identify the product page "correspondence OS".
  • ※The latest correspondence situation, please identify correspondence table page.
