Product information

11ac 867+300Mbps wireless LAN gigabit router

WRC-1167GHBK-S

We can set anyone immediately, and for communication, Internet TV can regenerate giga smoothly without using CD-ROM and application. Wireless LAN router which communication is available for comfortably even if four families use plural terminals at the same time each.

11ac 867+300Mbps wireless LAN gigabit router (WRC-1167GHBK-S)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
11ac 867+300Mbps wireless LAN gigabit router (WRC-1167GHBK-S) WRC-1167GHBK-S
4953103294066
11ac 867+300Mbps wireless LAN gigabit router 7,690 yen (tax-excluded)

Product photo (※ to enlarge the images, please click)

Features of product

Both new generation super-high-speed wireless 4KTV and net digital contents provide video are considerably comfortable!

※It is maximum in 1 theory and is not thing indicating real Wireless speed.

※We assume the use within 3 terminals per 2 one.

Is easy to understand the Features of [-S] series; introduction [-S] series happy Moriai demonstration sales video

Happy Moriai introduces Features of Wi-Fi router [-S] series of ELECOM clearly!

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

We can set anyone immediately without using CD-ROM and application! In smartphone and PC "simple setup 2"

We have access to automatic Wi-Fi in WPS

We can easily set in smartphone and PC simple substance from the WEB browser top without setting up installation and CD-ROM drive of application.
We push WPS button of connected to terminal followed by connection method between router, terminal adopts WPS setting of industry-wide standard that we only push WPS button on the router side and can connect.

Digital cross connecting is possible from WEB browser of smartphone and PC, too

When we set by manual operation, we choose applicable SSID and can be connected just to input encrypting key.
We input Wireless setting information of mention into bundled "brief setup seat" (initial value). We perform setting from the browser top. For coherent setting method not to choose kind of terminal as, simple setting is possible in anyone immediately.

As manager password to manage setting of router can set customer on browser after the connection between router, terminal freely, security side is reliable, too. Because password lists in Sticker bundled with and can keep, we do not have to worry to lose.

The high sensitive built-in antenna (2 X 2) deployment that electric wave is hard to break off

The high sensitive built-in antenna (2 X 2) deployment

It is higher-speed and realizes stable wireless communication by having adopted two independent high sensitive built-in antennas.

It is high speed communication with 4 X 4 Smart antenna

Conventionally, realization (※) new generation standard "11ac" adopts 280% of super-high-speed communication in comparison with standard

New generation standard "11ac" which realizes giga Wi-Fi

By new generation standard 11ac corresponding to general purpose high 5GHz communication, is strong for electric wave interference in PC of the use, in before in comparison with standard is realization by ultraspeed communication of approximately 280%. ※The speed is a value of standard, and the actual speed depends on the environment.

Because it is dual band, we are connected in various ways

High speed Wi-Fi communication that is comfortable by dual band correspondence of Wireless LAN11n/g/b standard of general purpose high 2.4GHz band and 11ac/n/a standard of 5GHz Zone resisting electric wave interference is available.

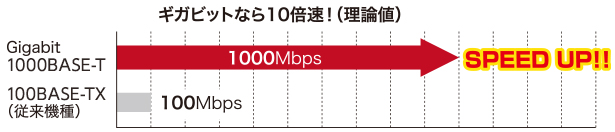

All port giga (1000Mbps) correspondence to make the most of giga optical line

It supports giga communication

Speed such as optical lines (giga service) that speedup advances is utilized to the full by video distribution

It is super-high-speed by the realization hardware NAT deployment at industry fastest 940Mbps

Because it is dual band, we are connected in various ways

We suppress packet L.A. and realize high-speed throughput by performing communication processing with hardware in comparison with communication processing by software. Because Wireless is available with maintaining high speed communication such as optical lines, it is most suitable for Wi-Fi connection such as smartphone. Throughput that was approximately 200-300Mbps in before is available for large speedup of a maximum of 940Mbps.

Rich function usable usefully full of functions not to be only router function, and to be usable

It is usable with Wireless cordless handset mode

We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.

It is usable with repeater mode

Place where electric wave of Wi-Fi is hard to reach by changing This product to repeater mode can use the Internet comfortably.

Stable communication beam forming Z high-speed in iPhone, smartphone

"Beam forming Z" where radio wave leads to

It is available comfortably at place where electric wave was hard to reach so far including place away from Wi-Fi and place with many obstacles. We send electric wave to place that goes, and is hard to be crowded of electric wave well.
We can anticipate enough speed up in not only iPhone but also conventional smartphone by original tuning.
※It is necessary for the connected smartphone side to support beam forming.

As for the Wi-Fi router of ELECOM, this is great! (beam forming Z)

We introduce "beam forming Z" equipped with by wireless LAN router of ELECOM. As we make radio wave in place that we aimed at, communication speed with far-off smartphone improves

※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.

Special feature: Beam forming Z

iPhone/ smartphone corresponding to beam forming Z arrives by stable communication well to “ distance! "“ Wi-Fi speedup! "

It supports iPhone / smartphone! Beam forming Z! Plural beams raise electric wave strength to far-off terminal!

The last child net timer is largely improvement of function! Child net timer 2

Child net timer 2

It is equipped with "child net timer 2" which can restrict connect time of Mobile game console and smartphone connecting with the Internet by Wi-Fi function. We protect child from long-time game and Internet.
It is necessary to purchase license on the use by "WEB site filter function" separately.

Child net timer

※It is with router mode, and this function is available.

We update update automatic firmware in the latest firmware and are always functioned

We are reliable by automatic update

We automatically update in the latest firmware.

You can use router by the always latest program including addition and bug correction of new feature.

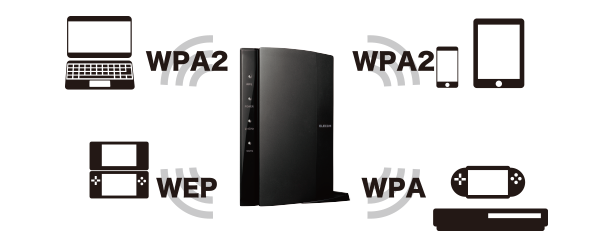

The multi-SSID function deployment to be usable with various apparatuses with keeping high security

We can set plural SSID

It is function that can set plural SSID in one wireless LAN access point. We connect with various apparatuses with keeping high security.

Multi-SSID

Specifications

□Wireless LAN part
Wireless LAN standard IEEE 802 .11ac conformity
IEEE 802 .11n conformity
IEEE 802 .11a conformity
IEEE 802 .11b conformity
IEEE 802 .11 g conformity
Frequency Range: 2.4GHz band: 2,400-2,484MHz
5.2GHz zone (W52): 5,150-5,250MHz
5.3GHz zone (W53): 5,250-5,350MHz
5.6GHz zone (W56): 5,470-5,725MHz
Channel 2.4GHz band: 1 - 13ch
5GHz zone (W52/W53/W56):
36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140ch
Basic transmission scheme IEEE 802 .11ac: MIMO-OFDM
IEEE 802 .11n: MIMO-OFDM
.11 g of IEEE 802: OFDM
IEEE 802 .11b: DS-SS
IEEE 802 .11a: OFDM
Line speed (theoretical value) IEEE 802 .11ac: Up to 867Mbps
IEEE 802 .11n: Up to 300Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
IEEE 802 .11a: Up to 54Mbps
Antenna Four built-in antennas
・2.4GHz band: Two transmission and reception
・5GHz zone: Two transmission and reception
Security WPA2-PSK(AES)
WPA-PSK(TKIP)
WEP(64bit/128bit)
Access method Infrastructure
Multi-SSID Correspondence (2.4GHz: to up to three /5GHz: up to three, most big plan six)
Setting method WPS
Separator function Privacy separator / SSID separator correspondence (it functions for guest SSID)
Other Wireless functions SSID stealth bomber setting / MAC address filtering / automatic channel setting

※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.

□Wired LAN part
LAN
Interface
Wired LAN standard IEEE 802 .3ab(1000BASE-T) conformity
IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 4 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
WAN
Interface
Wired LAN standard IEEE 802 .3ab(1000BASE-T) conformity
IEEE 802 .3u (100BASE-TX) conformity
IEEE 802 .3(10BASE-T) conformity
Terminal RJ-45 type 8 pole x 1 port
Auto MDI/MDI-X Correspondence
Automatic negotiation Correspondence
Hardware NAT Correspondence
□Router part
Equipment mode Router mode
Access point mode
Repeater mode
Cordless handset mode
Use protocol TCP/IP (IPv6/IPv4)
WAN setting DHCP / fixation IP address / PPPoE (1 session)
LAN setting DHCP server / fixation IP address
Other functions / IPv6 pass-through-adaptive / VPN pass-through-adaptive / DMZ correspondence for UPnP
□Other Specifications
Power supply connector DC Jack
Input Voltage AC100 - 240V ±10% 50/60Hz
Power saving function LED electric power saving
Power consumption Approximately 6.9W
Operating environment Temperature: 0 degrees Celsius - 40 degrees Celsius humidity: 10% - 85% (but thing without dew condensation)
Dimensions (width X D X H) (W)Approximately 130.0* (D) approximately 26.0* (H) approximately 182.5mm (only as for the body)
Weight : Approximately 230 g (only as for the body)
Various acquisition standards VCCI Class B / TELEC / PSE
Term of a guarantee One year
Incidental service The website filter function deployment (option sold separately)
Accessories: One wireless LAN router body, stands one, exclusive AC adapter one, LAN cable (approximately 1m) one, various Manual, simple setup seat one piece, guidance one piece of Web site filter license

Supported OS

  • ※Mac OS X is limited to use in plane mounted with CPU made by Intel.
  • ※We cope after Windows Vista SP1.
  • ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
  • ※The latest correspondence situation, please identify correspondence table page.

Supported devices:

Smartphone
  • iPhone series
  • Android terminal
Tablet
  • iPad series
  • Android terminal
  • Windows terminal
PC
  • Windows-based machine
  • Mac OS-based machine
Game apparatus
  • Nintendo Switch
  • 3DS/DS series
  • PSP series
  • PS3/4
  • Wii/Wii U
  • Xbox360
Printer
  • Canon
  • EPSON
  • HP
  • BROTHER
Smart speaker
  • Google/Google home
  • LINE/Clova WAVE
  • ※Version of the OS, please identify the product page "correspondence OS".
  • ※The latest correspondence situation, please identify correspondence table page.
