11ac 867+300Mbps wireless LAN router
WRC-1167FEBK-S
We can set anyone immediately and can regenerate video in high speed communication of 867Mbps smoothly without using CD-ROM and application. Wireless LAN router of entry model that assumed 2-3 families with much smartphone communication.
Model number / lineup
| Model number /JANCD | Features | Standard price | Remarks |
|---|---|---|---|
WRC-1167FEBK-S4953103301344 |
11ac 867+300Mbps wireless LAN router | 6,140 yen (tax-excluded) |
Product photo (※ to enlarge the images, please click)
Features of product
※It is maximum in 1 theory and is not thing indicating real Wireless speed.
※We assume the use within 3 terminals per 2 one.
We close all which is all open

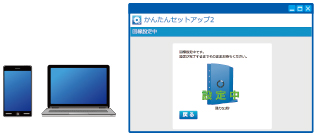

We can set anyone immediately without using CD-ROM and application! In smartphone and PC "simple setup 2"
We have access to automatic Wi-Fi in WPS
We can easily set in smartphone and PC simple substance from the WEB browser top without setting up installation and CD-ROM drive of application.
We push WPS button of connected to terminal followed by connection method between router, terminal adopts WPS setting of industry-wide standard that we only push WPS button on the router side and can connect.
Digital cross connecting is possible from WEB browser of smartphone and PC, too
When we set by manual operation, we choose applicable SSID and can be connected just to input encrypting key.
We input Wireless setting information of mention into bundled "brief setup seat" (initial value). We perform setting from the browser top. For coherent setting method not to choose kind of terminal as, simple setting is possible in anyone immediately.
As manager password to manage setting of router can set customer on browser after the connection between router, terminal freely, security side is reliable, too. Because password lists in Sticker bundled with and can keep, we do not have to worry to lose.
The high sensitive built-in antenna (2 X 2) deployment that electric wave is hard to break off
The high sensitive built-in antenna (2 X 2) deployment
It is higher-speed and realizes stable wireless communication by having adopted two independent high sensitive built-in antennas.

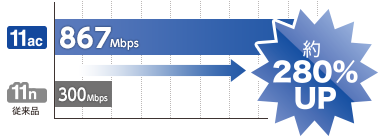

Conventionally, realization (※) new generation standard "11ac" adopts 280% of super-high-speed communication in comparison with standard
New generation standard "11ac" which realizes giga Wi-Fi
By new generation standard 11ac corresponding to general purpose high 5GHz communication, is strong for electric wave interference in PC of the use, in before in comparison with standard is realization by ultraspeed communication of approximately 280%. ※The speed is a value of standard, and the actual speed depends on the environment.

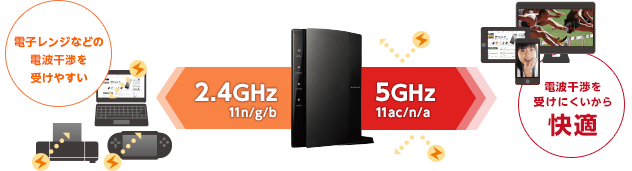

Because it is dual band, we are connected in various ways
High speed Wi-Fi communication that is comfortable by dual band correspondence of Wireless LAN11n/g/b standard of general purpose high 2.4GHz band and 11ac/n/a standard of 5GHz Zone resisting electric wave interference is available.
Rich function usable usefully full of functions not to be only router function, and to be usable
It is usable with Wireless cordless handset mode
We can make Network apparatus having wired LAN port Wireless by changing This product to cordless handset mode.
It is usable with repeater mode
Place where electric wave of Wi-Fi is hard to reach by changing This product to repeater mode can use the Internet comfortably.

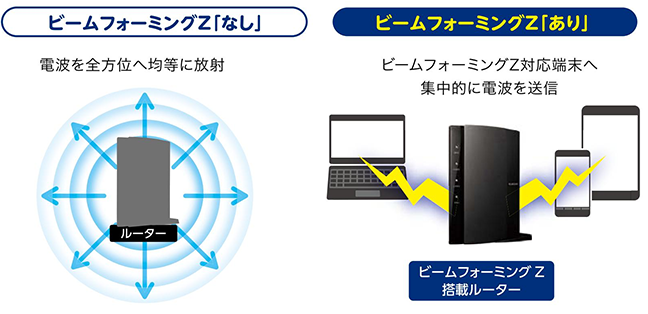

Stable communication beam forming Z high-speed in iPhone, smartphone
"Beam forming Z" where radio wave leads to
It is available comfortably at place where electric wave was hard to reach so far including place away from Wi-Fi and place with many obstacles. We send electric wave to place that goes, and is hard to be crowded of electric wave well.
We can anticipate enough speed up in not only iPhone but also conventional smartphone by original tuning.
※It is necessary for the connected smartphone side to support beam forming.
As for the Wi-Fi router of ELECOM, this is great! (beam forming Z)
We introduce "beam forming Z" equipped with by wireless LAN router of ELECOM. As we make radio wave in place that we aimed at, communication speed with far-off smartphone improves
※About Specifications of This product, please confirm lower this page Specifications.
※As Audio appears, please be careful about volume.
Special feature: Beam forming Z
iPhone/ smartphone corresponding to beam forming Z arrives by stable communication well to “ distance! "“ Wi-Fi speedup! "
List of beam forming-response terminals
We can enjoy movie, drama animation in every radio equipment. It is free now for 31 days!
The last child net timer is largely improvement of function! Child net timer 2
Child net timer 2
It is equipped with "child net timer 2" which can restrict connect time of Mobile game console and smartphone connecting with the Internet by Wi-Fi function. We protect child from long-time game and Internet.
It is necessary to purchase license on the use by "WEB site filter function" separately.
※It is with router mode, and this function is available.
※WEB site filter of This product becomes option (separate sale).
We update update automatic firmware in the latest firmware and are always functioned
We are reliable by automatic update
We automatically update in the latest firmware.
You can use router by the always latest program including addition and bug correction of new feature.

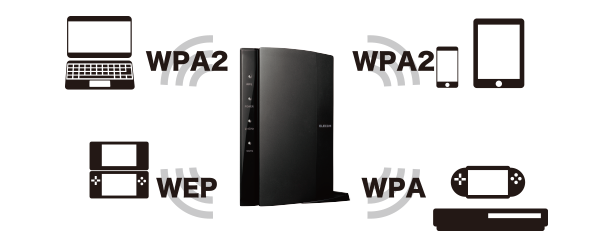

The multi-SSID function deployment to be usable with various apparatuses with keeping high security
We can set plural SSID
It is function that can set plural SSID in one wireless LAN access point. We connect with various apparatuses with keeping high security.
Specifications
| Wireless LAN standard | IEEE 802 .11ac conformity IEEE 802 .11n conformity IEEE 802 .11a conformity IEEE 802 .11b conformity IEEE 802 .11 g conformity |
|---|---|
| Frequency Range: | 2.4GHz band: 2,400-2,484MHz 5.2GHz zone (W52): 5,150-5,250MHz 5.3GHz zone (W53): 5,250-5,350MHz 5.6GHz zone (W56): 5,470-5,725MHz |
| Channel | 2.4GHz band: 1 - 13ch 5GHz zone (W52/W53/W56): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140ch |
| Basic transmission scheme | IEEE 802 .11ac: MIMO-OFDM IEEE 802 .11n: MIMO-OFDM .11 g of IEEE 802: OFDM IEEE 802 .11b: DS-SS IEEE 802 .11a: OFDM |
| Line speed (theoretical value) | IEEE 802 .11ac: Up to 867Mbps IEEE 802 .11n: Up to 300Mbps .11 g of IEEE 802: Up to 54Mbps IEEE 802 .11b: Up to 11Mbps IEEE 802 .11a: Up to 54Mbps |
| Antenna | Four built-in antennas ・2.4GHz band: Two transmission and reception ・5GHz zone: Two transmission and reception |
| Security | WPA2-PSK(AES) WPA-PSK(TKIP) WEP(64bit/128bit) |
| Access method | Infrastructure |
| Multi-SSID | Correspondence (2.4GHz: to up to three /5GHz: up to three, most big plan six) |
| Setting method | WPS |
| Separator function | Privacy separator / SSID separator correspondence (it functions for guest SSID) | Other Wireless functions | SSID stealth bomber setting / MAC address filtering / automatic channel setting |
※W52, outdoor use of W53 are prohibited by Wireless Telegraphy Act.
| LAN Interface |
Wired LAN standard | IEEE 802 .3u (100BASE-TX) conformity IEEE 802 .3(10BASE-T) conformity |
|---|---|---|
| Terminal | RJ-45 type 8 pole x 4 port | |
| Auto MDI/MDI-X | Correspondence | |
| Automatic negotiation | Correspondence | |
| WAN Interface |
Wired LAN standard | IEEE 802 .3u (100BASE-TX) conformity IEEE 802 .3(10BASE-T) conformity |
| Terminal | RJ-45 type 8 pole x 1 port | |
| Auto MDI/MDI-X | Correspondence | |
| Automatic negotiation | Correspondence | |
| Hardware NAT | Correspondence |
| Equipment mode | Router mode Access point mode Repeater mode Cordless handset mode |
|---|---|
| Use protocol | TCP/IP (IPv6/IPv4) |
| WAN setting | DHCP / fixation IP address / PPPoE (1 session) |
| LAN setting | DHCP server / fixation IP address |
| Other functions | / IPv6 pass-through-adaptive / VPN pass-through-adaptive / DMZ correspondence for UPnP |
| Power supply connector | DC Jack |
|---|---|
| Input Voltage | AC100 - 240V ±10% 50/60Hz |
| Power saving function | LED electric power saving |
| Power consumption | Approximately 5.6W |
| Operating environment | Temperature: 0 degrees Celsius - 40 degrees Celsius humidity: 10% - 85% (but thing without dew condensation) |
| Dimensions (width X D X H) | (W)Approximately 130.0* (D) approximately 26.0* (H) approximately 182.5mm (only as for the body) |
| Weight : | Approximately 210 g (only as for the body) |
| Various acquisition standards | VCCI Class B / TELEC / PSE |
| Term of a guarantee | One year |
| Incidental service | The website filter function deployment (option sold separately) |
|---|---|
| Accessories: | One wireless LAN router body, stands one, exclusive AC adapter one, LAN cable (approximately 1m) one, various Manual, simple setup seat one piece, guidance one piece of Web site filter license |
Supported OS
- ※Mac OS X is limited to use in plane mounted with CPU made by Intel.
- ※We cope after Windows Vista SP1.
- ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
- ※The latest correspondence situation, please identify correspondence table page.
Supported devices:
 |
|
|---|---|
 |
|
 |
|
 |
|
 |
|
 |
|
- ※Version of the OS, please identify the product page "correspondence OS".
- ※The latest correspondence situation, please identify correspondence table page.
