11ac, USB3.0-adaptive 867M small size wireless LAN adapter
11ac, USB3.0 correspondence 867Mbps small size wireless LAN adapter which copes with USB3.0, and only attaches to PC, and realizes high-speed wireless communication small model that 89% Dimensions fell from older model.
Model number / lineup
|Model number /JANCD||Features||Standard price||Remarks|
|11ac, USB3.0-adaptive 867M small size wireless LAN adapter||5,760 yen (tax-excluded)|
Features of product
It is strong for electric wave interference in PC of the use, and high speed communication of 11ac 2 X 2 can let you upgrade with possible apparatus by connecting This product corresponding to 11ac to Universal Serial Bus port of PC.
※It is necessary for main phone to support 11ac.
PC incorporation cordless handset: 202Mbps
Wireless LAN main phone: WRC-2533GHBK2-T (FW v1.15)
Wireless LAN cordless handset: WDC-867DU3S
PC incorporation cordless handset: Broadcom 802.11n driver (2012/3/19Version)
PC 1(Client PC): ACER V5-171 Windows7SP1 64bit Core i3 2367M /2GB
PC 2(Server PC): ASUS X556UA-7500 Windows10 64bit HOME Core i7 7500U/8GB
[method for measurement]
[PC 1] ------(wire) -----[wireless LAN main phone] >> (wirelessly connect) >> [PC 2]
It is PC 1 in SW IxChariot ver 7.30 sp3 → Wireless LAN main phone → Wireless LAN cordless handset → We measure three times of communication of two ken of PC and calculate average.
(the May, 2017 we investigation)
From older model (WDC-867U3) of the same Wireless standard, we improve function, and large Dimensions falls.
22mm slight as for the part which jumps out even if we attach to note PC. We are not interested even if we carry with putting on.

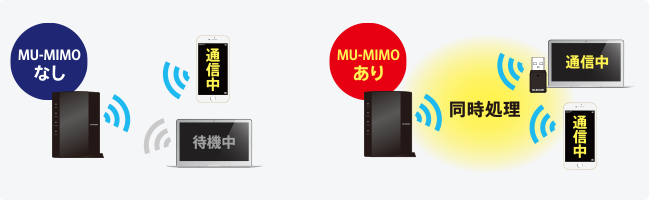

As we plurally cope with concurrent communication process even if other cordless handsets are connected, communication is possible without waiting time.
※It is necessary for main phone to support MU-MIMO.
Preparations for setup are completed just to put Windows 10 in Universal Serial Bus port. We set up CD drive, and troublesome work including driver downloading is available by unnecessary immediately.
We can choose installation method of driver among attached CD-ROM by ultra book (Ultrabook™) without drive of CD-ROM depending on downloading and use environment from WEB in environment where there is not Internet environment.
※Environment that can connect with the Internet by Wireless cordless handset embedding wired LAN or PC beforehand is necessary to download driver software.
We input "encrypting key" into past setting by hand, and difficult work was necessary, but we only push button, and setting completes if there is between products corresponding to WPS.
As wireless LAN router of ELECOM supports WPS, wireless LAN can set even the first one in peace.

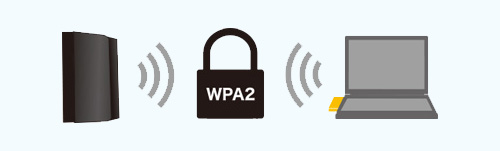

It supports "WPA2-PSK". You prevent takeover of line and leak of data and can use wireless LAN in peace.
|Interface:||USB3.0 / 2.0|
IEEE 802 .11ac (5GHz)
IEEE 802 .11n (2.4GHz&5GHz)
IEEE 802 .11a (5GHz)
.11 g of IEEE 802 (2.4GHz)
IEEE 802 .11b (2.4GHz)
2.4GHz band: 2,400-2,484MHz
5.2GHz zone (W52): 5,150-5,250MHz
5.3GHz zone (W53): 5,250-5,350MHz
5.6GHz zone (W56): 5,470-5,725MHz
2.4GHz band: 1 - 13ch
5GHz zone (W52/W53/W56): 36 / 40 / 44 / 48 / 52 / 56 / 60 / 64 / 100 / 104 / 108 / 112 / 116 / 120 / 124 / 128 / 132 / 136 / 140ch
|Basic transmission scheme||
IEEE 802 .11ac: MIMO-OFDM
IEEE 802 .11n: MIMO-OFDM
.11 g of IEEE 802: OFDM
IEEE 802 .11b: DS-SS
IEEE 802 .11a: OFDM
|Data-transfer velocity (theoretical value)||
IEEE 802 .11ac: Up to 867Mbps
IEEE 802 .11n: Up to 300Mbps
.11 g of IEEE 802: Up to 54Mbps
IEEE 802 .11b: Up to 11Mbps
IEEE 802 .11a: Up to 54Mbps
|Various acquisition standards||TELEC / VCCI Class B / JATE|
|MU-MIMO||Correspondence ※It is necessary for main phone to support MU-MIMO.|
|The transmission output||Less than 10mW/MHz|
|Security||WPA2-PSK(AES) / WPA-PSK(TKIP) / WEP(128/64bit)|
|Setting method||WPS (soft / button method)|
|Environmental condition||Temperature: 0-40 degrees Celsius, humidity: 20-80% (thing without dew condensation)|
|Consumption electric current||Approximately 3.0W|
|Dimensions (width X D X H)||Approximately 16* approximately 34mm X approximately 8mm|
|Weight :||Approximately 4 g|
|Accessories:||Setup guide / CD-ROM (driver software)|
・Windows 10 S * driverless movement is possible
・Windows 10 (32/64bit) * driverless movement is possible
・Windows 10 Creators Update * driverless movement is possible
・Windows 8.1 (32/64bit)
・It is (32/64bit) after Windows 7 SP1
・Mac OS X 10.11
・Mac OS X 10.10
- ※The correspondence OS is limited all to Japanese OS. It is necessary for PC to carry one of the OS's mentioned above.
- ※The latest correspondence situation, please identify correspondence table page.
