Product information

USB microscope

UCAM-MS130NSV

USB microscope which can spread and display subject which it is usable immediately just to be connected to PC, and is not seen by the naked eye.

USB microscope (UCAM-MS130NSV)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
USB microscope (UCAM-MS130NSV) UCAM-MS130NSV
4953103461512
〈 Silver 〉 8,480 yen (tax-excluded) It is limited to stock

Product photo (※ to enlarge the images, please click)

Features of product

USB microscope which can spread and display subject which is not seen by the naked eye

  • On check of skin

    On check of skin

  • For observation of slight accessory

    For observation of slight accessory

  • On check of scalp

    On check of scalp

  • Expansion such as printed matter

    Expansion such as printed matter

We are only connected to PC and are USB microscope which can spread and display subject which is not seen by the naked eye. It is convenient for check of skin and scalp, observation of slight accessory, expansion of printed matter.

It is equipped with 1,300,000 pixels of high-resolution CMOS sensors

It is equipped with 1,300,000 pixels of high-resolution 1/6 inch CMOS sensors.

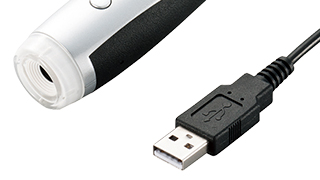

It is usable just to be connected to Universal Serial Bus port of PC

In correspondence with "UVC" (USB video class) which is standard of USB 2.0, driver installation from CD-ROM is unnecessary and we only connect to Universal Serial Bus port of PC and are available.

It supports focus to 5-100mm

In correspondence with Manual focus to 5-100mm, shooting from point-blank range to middle distance is possible.

Zoom shooting of 160 times is possible by total

It supports 8 times with 20 times, digital zoom with optical zoom, and zoom shooting of 160 times is possible by total. ※Digital zoom needs installation of WebCam assistant.

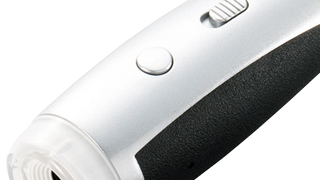

We can photograph still image in one-touch

It is equipped with still shutter and can photograph extended image as still image in one-touch.

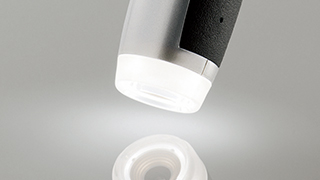

It carries LED lamp

It carries LED lamp lighting up subject at the time of close-up photography brightly.

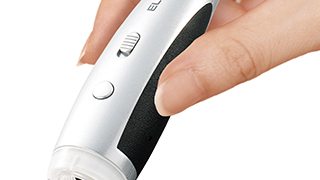

Grip which is easy to grasp, and is grippy

It is easy to grasp and adopts grippy rubber grip.

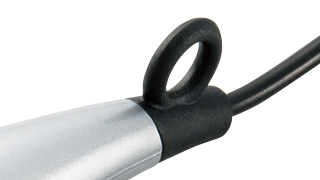

With convenient ring hung to hook

There is convenient ring to hang to hook, and to receive.

We correspond to "WebCam assistant"

It is available by convenient functions such as 1 click still image shooting or bread zoom by installing "WebCam assistant" which we can download free from our Web site. ※It does not support Macintosh.

Detailed explanation and download of "WebCam assistant" from this

Specifications of product

USB microscope (UCAM-MS130NSV)
UCAM-MS130NSV

USB microscope which can spread and display subject which it is usable immediately just to be connected to PC, and is not seen by the naked eye.

Operating environment (Windows) It is Windows 8.1, Windows 7, Windows Vista, HDD Size: the OS the Intel Pentium4 (more than 2.4GHz) OS CPU USB 2.0 port recommended more than 500MB: 5V, electricity of 500mA are supply dekirukoto DirectX: After 9.0c
The number of camera, the pixels 1,300,000 pixels
Camera, televising element 1/6 inch CMOS sensor
Camera focus method Manual focus
Camera, max resolution 1,280*1,024 pixel
Camera, maximum frame rate ■YUY2 form, ... 640*480 pixel: 30fps, 1,280*720 pixel of time: 8fps, 1,280*1,024 pixel of time: 8fps
Camera, angle of view Opposite angle 55 degrees
The number of camera, the colors Approximately 16,770,000 colors of (24bit)
Camera Interface USB 2.0 (type A male)
The camera cable head Approximately 1.45m
Camera, body color 〈 Silver 〉
Camera, weight Approximately 65 g
Camera, Dimensions 40mm in width X 131.5mm in depth X 27.5mm in height
Accessories: User manual X 1
Term of a guarantee Six months

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
