Product information

16 port Self-powered USB hubs

U2H-Z16SBK

16 port USB hubs which can connect 16 USB apparatuses at the same time, and large-capacity AC Adapter is attached, and realizes stable movement.

16 port Self-powered USB hub (U2H-Z16SBK)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
16 port Self-powered USB hub (U2H-Z16SBK) U2H-Z16SBK
4953103245785
< Black > 9,400 yen (tax-excluded)

Product photo (※ to enlarge the images, please click)

Features of product

● USB hub for exclusive use of Self-powered which we can connect USB apparatus of 16 to at the same time

It is USB hub for exclusive use of Self-powered realizing stable action in large-capacity AC Adapter while being equipped with port of 16. As we can connect 16 USB peripheral devices that continues increasing for power supply in a mass, the desk circumference is refreshing and is sure to get that it is in comfortable working environment. In addition, attached AC Adapter can supply stable electricity to apparatus such as big portableness HDD of power consumption in model for exclusive use of Self-powered to supply high volume 40W, electric current of 7,500mA in total to.

※As for the This product, Self-powered is for exclusive use. We do not work in Bus powered.
※You are connected to Universal Serial Bus port where you can supply 5V, power supply of 500mA to, and please use.
USB hub for exclusive use of Self-powered which we can connect USB apparatus of 16 to at the same time
Expansion

● We integrate weight into base and realize stability



● Side port Specifications

We integrate weight into base and realize stability that is higher than Other conventional products. USB hub inclines in significance of cable and reduces worry to move.
In addition to 14 ports of the front desk, we equip side with 2 ports and are convenient at all when we connect wide USB apparatus of width interfering to neighboring Universal Serial Bus ports. Side port Specifications

● Cable long 1.5m which we can connect relaxedly



● Cable is stored with putting on and taking off type clearly

Cable length is length that can be connected relaxedly without choosing place at 1.5m.   We adopt stylish compact body, and cable is packable clearly when we do not use in the ceremony of putting on and taking off.

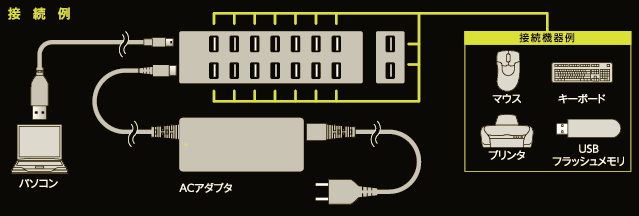

Connection Diagram

Specifications
Supported devices: PowerPC machine that Windows 8, Windows 7 (... SP1), Vista (... SP2), XP (SP1 - SP3), PC/AT compatibles that 2000 (SP4) works, Interl Mac machines that MacOSX10 .3-10.7 works, MacOSX10 .0-10.5 work
Interface: USB 2.0 (when we are connected to USB1.1 Interface, it is compatible with USB1.1 and works)
Maximum transfer speed 480Mbps (USB2.0 High Speed Mode theoretical value), 12Mbps (USB1.1)
Voltage 5V
Supply current Total 16 ports less than 7,500mA (less than 460mA per 1 port)
Dimensions: About width 42 X depth 160 X 26mm in height (we do not include cable)
Weight : Approximately 170 g
Accessories: USB cable (approximately 1.5m) X 1
AC Adapter X 1
AC Adapter cable (approximately 1.5m) X 1
※As This product assumes power supply in Japan and is designed, it is not available out of Japan.
※In Windows 98, Me, Mac OS 8.6-9 .x, we do not do action in High Speed Mode.
※As for the This product, Self-powered is for exclusive use. We do not work in Bus powered.
※You are connected to Universal Serial Bus port where you can supply 5V, power supply of 500mA to, and please use.
※If the hub or connected devices do not work correctly at the time of connection, please try removing some of the connected devices to fix the problem.

Specifications of product

16 port Self-powered USB hub (U2H-Z16SBK)
U2H-Z16SBK

16 port USB hubs which can connect 16 USB apparatuses at the same time, and large-capacity AC Adapter is attached, and realizes stable movement.

Interface: USB 2.0 (it is compatible with USB1.1 and, at the time of USB1.1 Interface connection, works)
Connector type: The PC side (Upstream Port): USB(A)male, the USB apparatus side (Downstream Port): USB(A)female X 16
Supported devices: PowerPC machine that Windows 8, Windows 7 (... SP1), Vista (... SP2), XP (SP1 - SP3), PC/AT compatibles that 2000 (SP4) works, Interl Mac machines that MacOSX10 .3-10.7 works, MacOSX10 .0-10.5 work
Maximum transfer speed 480Mbps ※In USB2.0 High Speed Mode ※It is theoretical value
The number of the up stream (the PC side) ports 1 port
The number of the down stream (the peripheral device side) ports 16 ports
USB cable method USB 2.0 cable is attached
The USB cable head 1.5m ※excluding connector
Power supply method Self-powered (use of AC adapter)
Can supply; electric current Self-powered time: Total 16 ports less than 7,500mA and total 4 ports less than 2,600mA
The DC cable head (AC adapter) 1.5m ※excluding connector
Color: < Black >
Dimensions: 42mm in width X 160mm in depth X 26mm in height (except cable)
Weight 170 g ※Cable, AC Adapter are excluded
Operating environment Temperature 0 degrees Celsius - 60 degrees Celsius, humidity 10-85% (thing without dew condensation)
Accessories: USB 2.0 cable X 1, exclusive AC adapter X 1
Available area As This product assumes power supply in Japan and is designed, it is not available out of Japan.
The electrical equipment security method PSE conformity (AC adapter)
Term of a guarantee Six months
Others It embeds weight

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
