Product information

Bluetooth minikeyboard

TK-FBP102BK

Bluetooth (R) pantograph minikeyboard which thinnest part 6.5mm, device to up to three which did pairing thin lightweight design of 264g in weight which is convenient for carrying around is changed to instantly.

Bluetooth minikeyboard (TK-FBP102BK)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
Bluetooth minikeyboard (TK-FBP102BK) TK-FBP102BK
4953103344976
< Black > 5,310 yen (tax-excluded)
Bluetooth minikeyboard (TK-FBP102BU) TK-FBP102BU
4953103344983
〈 Blue 〉 5,310 yen (tax-excluded)
Bluetooth minikeyboard (TK-FBP102WH) TK-FBP102WH
4953103344990
< White > 5,310 yen (tax-excluded)

Product photo (※ to enlarge the images, please click)

Features of product

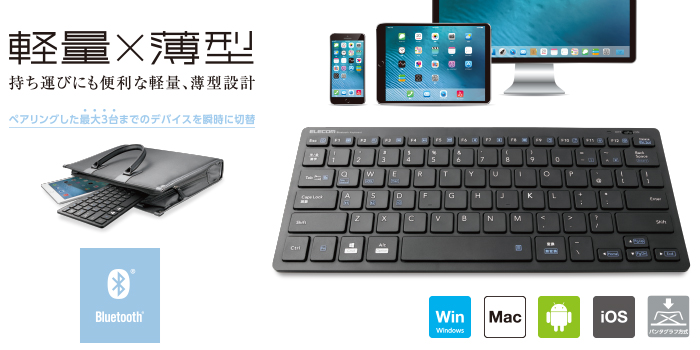

Thin light weight Bluetooth® pantograph minikeyboard which is convenient for carrying around

6.5mm, weight are 264 g of thin light weight Bluetooth® pantograph minikeyboards thinnest department which is convenient for carrying around.

  • TK-FBP102BK
    < Black >

  • TK-FBP102BU
    〈 Blue 〉

  • TK-FBP102WH
    < White >

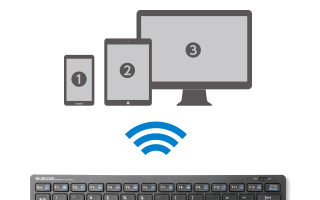

We cope with up to three multi-pairing

Pairing is possible with PC and tablet, device to up to three including smartphone. We can change device which we registered by pushing change button instantly.

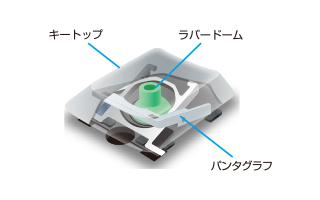

We adopt pantograph method

In Key type, we adopt "pantograph method" same as keyboard of note PC.

It is fitted by Bluetooth®3.0 Class2 standard

We meet Bluetooth®3.0 Class2 standard to realize electric power saving and can be connected without receiver if it is PC and tablet corresponding to Bluetooth®.

※Because even PC and tablet which do not support Bluetooth® prepare Bluetooth® adapter which adapted to standard, it is available. (recommended Bluetooth® adapter :LBT-UAN05C2 (separate sale))

It is equipped with input mode that optimized each OS

It is equipped with input mode that we optimized in each of Windows OS/Android OS/Macintosh OS/iOS.

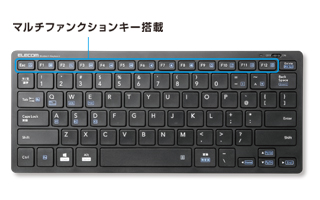

It is equipped with 13 kinds of multifunction keys

It is equipped with 13 kinds of multifunction keys which only push exclusive key, and can carry out functions to Web browser and Media Player.

Battery type which is reliable for use in whereabouts

It is battery type which is reliable for use in whereabouts.

It is equipped with power switch

It is equipped with power switch which can prevent consumption of battery in nonuse.

With LED lamp

LED lamp understanding power supply ON, the pairing situation is on.

We adopt original font that it is easy to see

It is stylish in key top and uses original font that it is easy to see.

It supports "ELECOM Keyboard layout"

We cope with ELECOM's original application "ELECOM Keyboard layout" which can do key to keyboard input according to printing at Android terminal.

Comfortable typing is possible

We adopt Key pitch and the Japanese 79 key to 19mm although being compact, and comfortable typing is possible.

Installation such as exclusive drivers is not necessary

Installation such as exclusive drivers is available immediately just to make pairing by unnecessary.

Specifications of product

Bluetooth minikeyboard (TK-FBP102BK)
TK-FBP102BK

Bluetooth (R) pantograph minikeyboard which thinnest part 6.5mm, device to up to three which did pairing thin lightweight design of 264g in weight which is convenient for carrying around is changed to instantly.

Connection method: Bluetooth (R) radio system
Supported devices: The Windows OS corresponding to Bluetooth (R)HID profile, the Android OS, the Macintosh OS, iOS deployment machine
Supported OS Windows 10, Windows 8.1, Windows 7, Windows XP, Android after 5.0, macOS High Sierra(10.13), iOS after 9.0 ※Update to latest version of each OS and installation of service pack may be necessary.
Accessible number Three
Color: < Black >
Communication method: GFSK method
Radio frequency: 2.4GHz band
Radio wave outreach: When we use on magnetic material (including desk of iron): When we use on approximately 3m, nonmagnetic material (including desk of tree): About 10 mm ※*These values are based on our tests and are not for guaranteed performance.
Key type Pantograph
Key Caps 79 keys (Japanese sequence) ※We do not cope with kana input of iOS.
Key pitch 19.0mm
Key stroke 2.0mm
The number of the hot key 13 keys
Power supply (the keyboard body) AAA alkaline dry cell battery, AAA manganese dry cell battery, one of the AAA nickel metal hydride rechargeable battery two
Estimated battery life Expected life when using alkali batteries: approximately 1.1 years ※Our test value
Dimensions (the keyboard body) 286.5mm in width X 121.5mm in depth X 20.4mm in height
Weight (the keyboard body) Approximately 264 g ※We do not include battery
Accessories: User manual X 1, AAA alkaline dry cell battery X 2 for operation check
Term of a guarantee Six months
Supported Profiles HID(Human Interface Device)
Others Compliant standard: Bluetooth 3.0 Class2

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
