Keyboard (the track ball deployment) belonging to stands
TK-DCP03BK
It is Bluetooth (R) keyboard for track ball deployment tablet corresponding to three multi-pairing and four of wiring in total adoption by mechanism that the stands can make tablet into keyboard.

Model number / lineup
Model number /JANCD | Features | Standard price | Remarks |
---|---|---|---|
![]() 4953103300958 |
< Black > | 16,000 yen (tax-excluded) |
Features of product
Lay; keyboard for dye cloth using paper patterns tablet

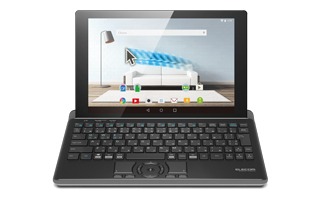

It is keyboard for high-performance tablet which adopted design of shape that the stands can make tablet into keyboard.

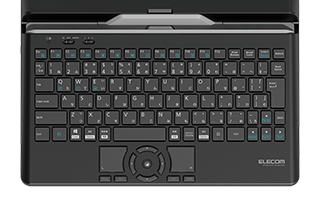

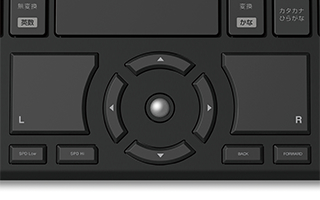

It is equipped with high-performance track ball

It is equipped with track ball which is available for operation of tablet, vertical and horizontal scroll button, the left, right-click button, button which "comes back, and advances", track ball pen up speed adjustment button only in keyboard.

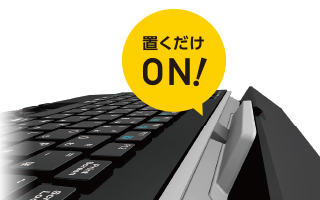

Only make the stands; power supply ON

It is automatically in power supply ON only by power switch being equipped with by stands part, and the stands doing tablet, and it is in OFF if we remove.
※It is necessary to turn off main power supply of the keyboard body.
Connection simple by wireless

Tablet is Bluetooth® and is easily accessible. As it is wireless type that we can wirelessly connect, we keep desk rotation clearly.

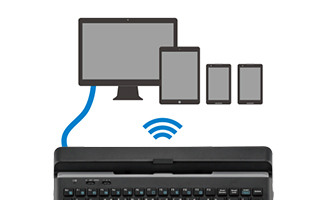

Multi-pairing to up to four is possible

We correspond to three multi-pairing and four of wiring in total, and change Switch which pairing is changed to immediately is on.

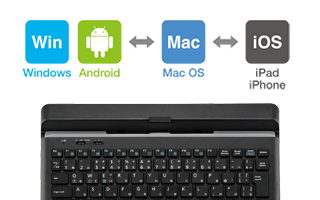

It is equipped with input mode that is most suitable for every OS

It is equipped with input mode that we optimized in Windows, each of Android/Mac OS/iOS.

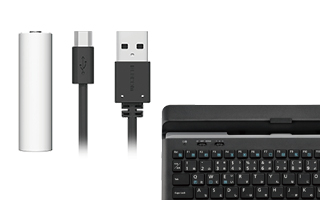

Both dry cell /USB feeding correspondence

We work with one size AA battery. Furthermore, it is available as we can feed by USB(microB) connection without worrying about running out of battery.
※AC adapter for USB feeding is necessary separately.

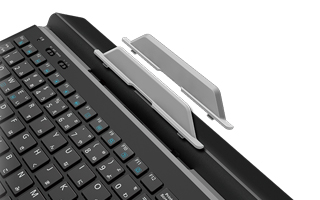

Tablet adjuster attachment

We can change stands part to three phases of thickness by using attached tablet adjuster.
It supports "ELECOM Keyboard layout"

We cope with ELECOM's original application "ELECOM Keyboard layout" which can do key to keyboard input according to printing at Android terminal.
※It is for exclusive use after Android4.1.
We realize stable typing by rather heavy design

We realize stable typing by locating four big slipper rubber in base by design that is heavier than normal keyboard.

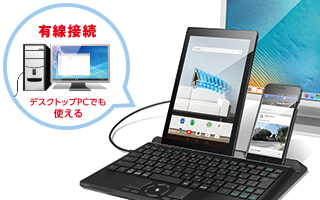

It is available as Wired keyboard

It is available as Wired keyboard by using attached USB cable and conversion connector.
※iOS does not support wiring.
Input that is stress Free

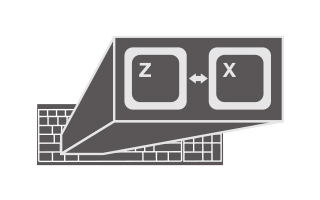

We adopt isolation design that key of one one becomes independent and reduces typo.
We adopt Key pitch and the Japanese 87 key to 17.5mm although being compact, and comfortable typing is possible.

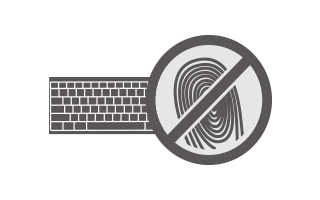

Matte-like that fingerprint is hard to be outstanding

We adopt Matte-like surface finish that fingerprint is hard to be outstanding in key top.

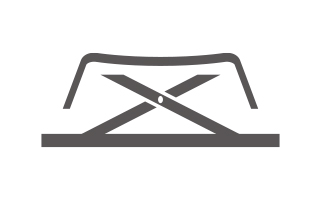

Key type of pantograph method

We adopt "pantograph method" same as keyboard of note PC in Key type.
We adopt original font

It is stylish in key top and uses original font that it is easy to see.
With LED lamp
LED lamp informing the access situation, battery residual quantity is on.
We are equipped with 11 hot key
We are equipped with 11 hot key to be able to perform volume operation or operation of Media Player.
Specifications of product

It is Bluetooth (R) keyboard for track ball deployment tablet corresponding to three multi-pairing and four of wiring in total adoption by mechanism that the stands can make tablet into keyboard.
Connection method: | Bluetooth (R) radio system /USB Wired connection |
---|---|
Interface: | Bluetooth (R)/USB A/USB microB |
Supported devices: | The Windows PC/Android OS, iOS deployment machine /Mac OS corresponding to Bluetooth (R)HID profile |
Supported OS | Windows 10, Windows 8.1/Android OS after 4.1 /iOS after 9.0 /Mac OS X after 10.9 |
Color: | < Black > |
Accessible number | Four (wire include) |
Communication method: | GFSK method |
Radio frequency: | 2.4GHz band |
Radio wave outreach: | When we use on magnetic material (including desk of iron): When we use on 3m, nonmagnetic material (including desk of tree): 10m ※Our test value |
Key type | Pantograph |
Key Caps | 87 keys (Japanese sequence) |
Key pitch | 17.5mm |
Key stroke | 1.7mm |
The number of the hot key | 11 keys |
Power supply (the keyboard body) | AA alkali dry cell, AA manganese dry cell, either one of the single 3 form NiMH rechargeable battery /USB Bus powered |
Estimated battery life | Expected life when using alkali batteries: approximately six months ※Our test value |
Dimensions (the keyboard body) | Width 280 X depth 200 X 27.5mm in height |
Weight (the keyboard body) | Approximately 555 g (galvanic cell is excluded) |
Accessories: | User manual X 1, AA alkali dry cell X 1 for operation check, feeding / data communication combined use USB cable X 1, USB conversion connector X 1 |
Term of a guarantee | Six months |
Supported Profiles | HID(Human Interface Device) ※Compliant standard: Bluetooth 3.0 Class2 |
Others | Button / top and bottom scroll button / right and left scroll button / slowdown, acceleration button which comes back, and advances is belonging to track ball / right and left click / |
※The latest correspondence information of this product is this.
※ Specifications may change without a notice, thank you for your understanding.
