Product information

BT audio system receiver for vehicle installation

LBT-ACR11BK

Bluetooth (R) audio system receiver which can enjoy music of smartphone by high-quality sound, wireless by listening to music of smartphone by car, and connecting to AUX terminal of car audio.

BT audio system receiver (LBT-ACR11BK) for vehicle installation
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
BT audio system receiver (LBT-ACR11BK) for vehicle installation LBT-ACR11BK
4953103492325
< Black > Open price
BT audio system receiver (LBT-ACR11WH) for vehicle installation LBT-ACR11WH
4953103492332
< White > Open price It is limited to stock

Product photo (※ to enlarge the images, please click)

Features of product

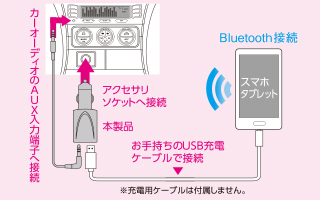

It is wireless with car audio with AUX terminal. We can enjoy with high-quality sound than FM transmitter in the inside of car.

It is wireless with car audio with AUX terminal. We can enjoy favorite music in smartphone with high-quality sound than FM transmitter in the inside of car.

We can hear Audio of one segment and application, too

We link to A2DP (Music functionality) Supported Devices and wireless and play music. We can hear Audio of one segment and application, too.

Codec AAC correspondence of high-quality sound

Codec AAC correspondence of high-quality sound. We can enjoy with high-quality sound than Audio transfer (SBC) in normal Bluetooth® in iPhone and iPad/iPod touch.

SCMS-T correspondence

SCMS-T correspondence. Musical piece file protected copyright is available for regeneration.

Operation simple by design for exclusive use of music

Operation simple by design for exclusive use of music. Operation on this plane side is unnecessary.

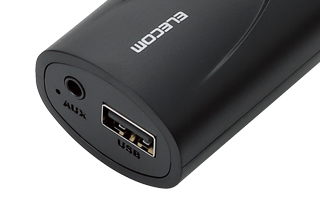

With Universal Serial Bus port

With hi-charging-response Universal Serial Bus port of maximum output 5V/2.4A.

※Please prepare cable for Charge separately.

12/24V car correspondence

12/24V car correspondence. Even large car is available.

※Product of image is LBT-ACR11WH.

Reliable safety design

Reliable safety design. We protect terminal and car by protection function for overcurrent, overvoltage, short.

Specifications of product

BT audio system receiver (LBT-ACR11BK) for vehicle installation
LBT-ACR11BK

Bluetooth (R) audio system receiver which can enjoy music of smartphone by high-quality sound, wireless by listening to music of smartphone by car, and connecting to AUX terminal of car audio.

Communication method: Bluetooth standard norm version4.0
Output: Bluetooth power class2
Maximum Communication Range Prospect approximately 10m
Use frequency band 2.4GHz band
Modulation technique FHSS (frequency hopping spectrum diffusion)
Correspondence Bluetooth profile A2DP
Correspondence codec of A2DP SBC,AAC
Correspondence contents protection of A2DP SCMS-T method
Transmission band (A2DP) 20-20,000Hz (at the time of 44.1kHz sampling)
Maximum registration possibility number Eight
Power supply It supplies than DC12V/24V cigar socket
Output terminal Stereo minijack X 1 (for Audio) / USB Type-A X 1 (output 2.4A for Charge)
Best Operational Environment (temperature) 0 degrees Celsius - 35 degrees Celsius
Best Operational Environment (Relative Humidity) 0% - 80% (but thing without dew condensation)
Storage environmental condition (temperature) -10 degrees Celsius - 45 degrees Celsius
Storage environmental condition (Relative Humidity) 0% - 80% (but thing without dew condensation)
Dimensions (width X D X H) Approximately 99.3*37.0*26.0mm
Weight : Approximately 32 g
Body color < Black >
Term of a guarantee One year
Laws and ordinances correspondence TELEC
The green purchase method Inapplicable
Accessories: Audio system cable, Manual (with warranty)

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
