Product information

Charge function FM transmitter (φ 3.5mm mini-plug) with

LAT-FMY02BK

We can enjoy music by car while charging smartphone tablet. The juteion mode deployment, FM transmitter of φ 3.5mm mini-plug connection type.

Charge function FM transmitter (φ 3.5mm mini-plug) (LAT-FMY02BK) belonging to
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
Charge function FM transmitter (φ 3.5mm mini-plug) (LAT-FMY02BK) belonging to LAT-FMY02BK
4953103311367
< Black > Open price
Charge function FM transmitter (φ 3.5mm mini-plug) (LAT-FMY02WH) belonging to LAT-FMY02WH
4953103311374
< White > Open price

Product photo (※ to enlarge the images, please click)

Features of product

FM transmitter which can enjoy music by car by simple connection that we only place in earphone Jack

By simple connection that we only insert to earphone Jack of smartphone and tablet, it is FM transmitter which can enjoy music by car. As well as music, we can hear Audio of navigator application and video contents with FM car stereo.
It is equipped with Universal Serial Bus port, and Charge is possible while enjoying music of smartphone tablet.

※Charge cable is not attached.

Transmit frequencies chooses among 4ch

We can choose transmit frequencies among Channel Four of 88.1/88.3/88.5/88 .7MHz.

Last memory function

It is equipped with last memory function to store frequency and juteion*tei which we used last even if we cut engine.

It supports 12/24V car

It supports 12/24V car, and even large cars such as trucks do not use adapters and are just available in peace.

Universal Serial Bus port for Charge which can output up to 2.4A

Universal Serial Bus port can charge tablet at maximum output 2.4A in peace.

It supports "Charge entrusting you"

We distinguish connected apparatus automatically and cope with the fastest Charge made "Charge entrusting you".

Feeble radio equipment conformity product which acquired ELP mark

It is feeble radio equipment conformity product which acquired ELP mark of JAAMA (national auto equipment industry society) issuance.

The juteion mode deployment

It is equipped with juteion mode and can enjoy powerful sound. juteion mode is ON/OFF possibility depending on preference.

How to use

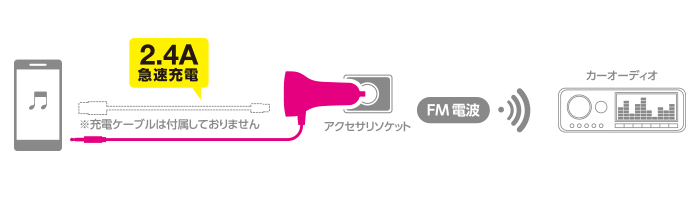

Connection diagram

Specifications of product

Charge function FM transmitter (φ 3.5mm mini-plug) (LAT-FMY02BK) belonging to
LAT-FMY02BK

We can enjoy music by car while charging smartphone tablet. The juteion mode deployment, FM transmitter of φ 3.5mm mini-plug connection type.

Connector type: Voice inputting: φ 3.5mm mini-plug Charge function: Universal Serial Bus port (Type A female) X 1 (we entrust you and charge the up to 5V/2.4A output)
Cable length Approximately 100cm (outcrop)
Weight : Approximately 55g
Correspondence socket Dimensions φ 20.8mm - φ 22.0mm
Term of a guarantee One year
Accessible apparatus (audio in) Apparatus which can output Audio by connecting φ 3.5mm mini-plug
Accessible apparatus (destination) Radio which can receive FM wave
Transmit frequencies 88.1/88.3/88.5/88 .7MHz
Housing materials (color) < Black >
Input Voltage DC12/24V
Dimensions (width X D X H) Approximately 41mm in width X 73mm in depth X 48mm in height () to remove housing part greatest dimension (protrusion)
Laws and ordinances correspondence Feeble radio equipment
Compliant standard: JAAMA authorization ELP mark acquisition product

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
