Product information

KVM/USB PC change over device

KVMP-CUN

Cable type KVM PC reshuffling device which realizes space-saving with compact cable type, and adds to one set of mouse / keyboard in two PC, and can share USB apparatus one and monitors such as printers.

KVM/USB PC change over device (KVMP-CUN)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
KVM/USB PC change over device (KVMP-CUN) KVMP-CUN
4953103223264
Two change over 4,000 yen (tax-excluded) It is limited to stock

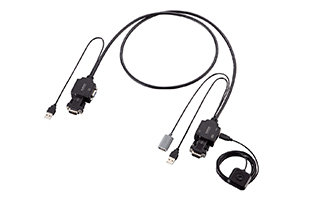

Product photo (※ to enlarge the images, please click)

Features of product

※Customer that introduction is examined in corporation recommends inspection in environment of customer before the purchase.

Cable-shaped KVM PC change over device

Cable-shaped KVM PC change over device

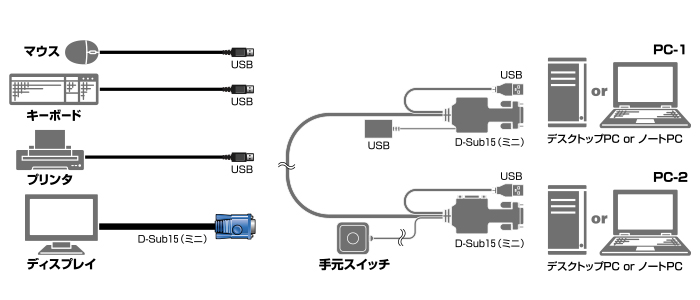

In two PC, it is cable-shaped KVM PC reshuffling device that can share monitor with one USB apparatus such as printers in addition to one set of mouse / keyboard.

Compact cable type which does not choose setting place

Compact cable type which does not choose setting place

It is connectable clearly without choosing setting place with compact cable type realizing space-saving.

Even PC without PS/2 port is available

As connection to the PC side is USB connection, even note PC and Macintosh which do not have PS/2 port are available.

We can share more than 4 USB apparatuses

In substitution for USB keyboard, USB mouse, we can share USB printer or USB hub, too. We can share more than 4 USB apparatuses by connecting USB hub. ※Power consumption of USB apparatus which we can connect to change over device is less than 1500mW (300mA) in total.

Even multifunctional mouse, keyboard are available

Even multifunctional mouse mounted with pulse tilt wheel function and multi-button, multifunctional keyboard, keyboard mouse set are available.

It supports high definition

Resolution of monitor supports wide resolution in correspondence with high definition of up to 2,048*1,536 dot.

Change over is easily possible in hand Switch

Change over is easily possible in hand Switch which we can install at hand, and reshuffling is possible in hot key.

LED lamp is with in hand Switch

Hand Switch has LED lamp knowing the change over point at glance.

Silent type that beep does not sound

It is silent type that beep (change over sound) does not sound in change over.

We maintain pending lock even if we change PC

[Num Lock], state of [Scroll Lock] are maintained even if we change PC [Caps Lock].

Installation of driver is unnecessary

Installation work such as drivers is unnecessary and they are connected and are available immediately.

Specifications of product

KVM/USB PC change over device (KVMP-CUN)
KVMP-CUN

Cable type KVM PC reshuffling device which realizes space-saving with compact cable type, and adds to one set of mouse / keyboard in two PC, and can share USB apparatus one and monitors such as printers.

Supported devices (the OS: Windows) [at the time of USB 2.0 movement] Is equipped with USB 2.0 port, Windows 10/8.1/8/7/Vista (PC/AT compatibles that is equipped with] USB1.1 ports at the time of PC/AT compatibles [USB1.1 movement that ... SP1)/XP(SP1 - SP3)/2000(SP4) works, and Windows 8.1/8/7/Vista (... SP1)/XP (... SP3)/2000 (... SP4)/Me/98 works
Supported devices (the OS: Mac) [at the time of USB 2.0 movement] PowerPC machine that we are equipped with USB 2.0 port and are equipped with PowerPC machine [at the time of USB1.1 movement] USB1.1 ports that Interl Mac machines that Mac OS X (after 10.3) /macOS (after 10.12) works, Mac OS X (10.0-10.5) work, and MacOS (8.6-9.2), MacOS X (10.0-10.5) work
Corresponding peripheral device USB 2.0 or USB apparatus (including mouse, keyboard), display for USB1.1: D-Sub15 mini-deployment display
Interface (the PC side) D-Sub15 mini-(male) X 2, USB type A (male) X 2
Interface (the peripheral device side) USB apparatus (female) X 3, D-Sub15 mini-(female) X 1
Attached cable (for PC) Specifications (1) [USB 2.0 junction cable] USB type A (male) -USB type A (female)
Maximum Resolution: 2048 X 1536
Change over method Change by hand Switch, hot key change by keyboard, change by application
Change over sound None
Power supply Bus powered
Voltage rating 5V
Maximum power consumption 575mW
Can supply; electric current Total 3 ports less than 300mA (less than 100mA per 1 port)
Dimensions: [monitor connection side] 43.0mm in width X 77.0mm in depth X 21.0mm in height ※Do not include cable [the mouse / keyboard connection side]; 39.0mm in width X 77.0mm in depth X 21.0mm in height ※Do not include cable [hand Switch]; 36.0mm in width X 60.0mm in depth X 12.0mm in height ※We do not include cable
Cable length 1.5m (except ※ connector)
Weight Approximately 193 g
Accessories: USB 2.0 junction cable (30cm) X 1, hand Switch, Manual, CD-ROM (application)
Term of a guarantee One year

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
