Product information

USB-adaptive 4 port PC change over device

KVM-KU4

It is one cable type PC change over device of USB type. Change over of Audio is possible on speaker Jack, too.

USB-adaptive 4 port PC change over device (KVM-KU4)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
USB-adaptive 2 port PC change over device (KVM-KU) KVM-KU
4953103041097
Two change over 9,800 yen (tax-excluded) The sale end
USB-adaptive 4 port PC change over device (KVM-KU4) KVM-KU4
4953103063457
Four change over 11,800 yen (tax-excluded)

Product photo (※ to enlarge the images, please click)

Features of product

Change over caliber who can operate plural PC with one set of USB mouse, USB keyboard display

It is reshuffling device that changes PC to two or four with one set of USB mouse, USB keyboard display, and is manipulability. It is compact design not to choose setting place with one cable type.

※ When you change WindowsPC and Macintosh, please use keyboard / mouse supporting both Windows/MacOS. In keyboard and mouse for exclusive use of for exclusive use of Windows or MacOS, we may not use.

  • USB Supported PCs change over plane (KVM-KU)

    KVM-KU
    <2 change over>

  • USB Supported PCs change over plane (KVM-KU4)

    KVM-KU4
    <4 change over>

One USB type type KVM Switch

It is USB type one model KVM Switch. It supports PC/AT compatibles, NotePC

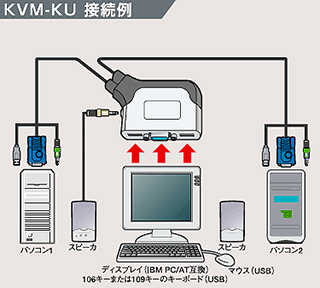

※Product of illustration is KVM-KU (two change over).

Speaker terminal incorporation

It embeds speaker terminal, and Audio change over is possible.

PC change over method by hot key

[shift] Change over is made when we push key the pattern[scrlk]key second which is push.

Automatic change over function

Automatic change over function is function to go around in spite of being reshuffling in sequence, and to display screen of PC connected in automatic scan mode set. It is function that is convenient for management of server that we do not usually input.

The status memory function deployment

It is equipped with status memory function to store value of Caps Lock/Num Lock/Scrl Lock every PC.

High-resolution correspondence

It supports display resolution of up to 2,048*1,536 dot.

※Wide resolution is non-compliant

Eco-friendly lead Free solder

We use solder which more largely than Other conventional products reduced lead.

Specifications of product

USB-adaptive 4 port PC change over device (KVM-KU4)
KVM-KU4

It is one cable type PC change over device of USB type. Change over of Audio is possible on speaker Jack, too.

The correspondence architecture Windows 10/8.1/8/7/Vista/XP/2000/Me/98/Server2016/Server2012R2/Server2008R2/server2003/2000Advanced Server/2000Server, Mac OS X (after 10.3) /macOS (after 10.12)
Standard: USB
Connector type 1 The console side: Mouse / keyboard: USB. Speaker: 3.5 stereo mini-plug. Monitor: D-sub15 mini (for exclusive use of analog)
Connect shape 2 The PC side: Mouse / keyboard: USB. Audio out: 3.5 stereo mini-plug. Monitor: D-sub15 mini (for exclusive use of analog)
Purpose of use, Uses Change over of PC
Accessories: Manual (attached to warranty)
Dimensions The body: W93.5mm*D94.5mm*H25mm cable: 180cm weight: 790 g
The number of the circuits 4
Power supply incorporation This product incorporates sound quality filter to suppress noise sound to occur at the time of connection. Therefore level of low range falls in connected state of change over device and is played.
The biggest transmission rate 6mm
Term of a guarantee One year

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
