Product information

HDMI Supported PCs change over device

KVM-HDHDU2

HDMI PC reshuffling device that supports 1920 X 1200 (WUXGA), 1920 X 1080 (full HD), wide resolution, and can share one set of HDMI correspondence display and USB mouse, USB keyboard, speaker in two PC.

HDMI Supported PCs change over device (KVM-HDHDU2)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
HDMI Supported PCs change over device (KVM-HDHDU2) KVM-HDHDU2
4953103261099
Two change over 17,100 yen (tax-excluded)

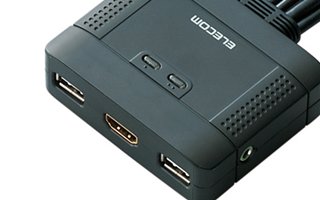

Product photo (※ to enlarge the images, please click)

Features of product

※Customer that introduction is examined in corporation recommends inspection in environment of customer before the purchase.

Two change over & PC change over device for HDMI

Four change over & PC change over device for HDMI

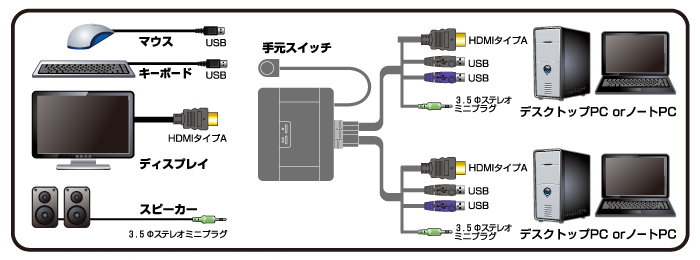

It is PC reshuffling device that can share USB apparatus, speakers such as mouse / keyboard with one set of display for HDMI with two PC mounted with HDMI terminal.

We correspond to both WUXGA, full HD

We correspond to both WUXGA, full HD

It supports 1920 X 1200 (WUXGA), 1920 X 1080 (full HD) wide resolution.

With LED lamp knowing the change over point at glance

With LED lamp knowing the change over point at glance

We are equipped with indicator lamp knowing the change over point immediately.

We can share more than 2 USB apparatuses, too

We can share more than 2 USB apparatuses, too

We can share two USB apparatuses and can share more than 3 USB apparatuses by connecting USB hub.

It supports Mac/PS3

It supports Mac/PS3

It supports not only Windows PC but also Macintosh and PlayStation (R)3.

It is equipped with emulation function

It is equipped with emulation function that can use interconnect equipment immediately even if we change PC.

We maintain pending lock even if we change PC

[Caps Lock] [Num Lock] [Scroll Lock] Even if on/off of each key changes PC of this, we can maintain

We cope with connection of HDCP apparatus

We cope with connection of HDCP apparatus. ※It does not support PC change over during the HDCP contents seeing and hearing.

USB printer and USB hub are accessible, too

When emulation function is off, it is accessible with USB printer or USB hub other than the mouse key board.

Display is always displayed with right resolution

Display is displayed with right resolution even if we do not operate change over device at the time of PC start in correspondence with back start.

Joint ownership, change over of speaker is possible

We are equipped with φ 3.5mm stereo mini-plug and can share speaker, too. We can change only speaker alone.

Wireless mouse key board is available, too

Even wireless mouse, wireless keyboard are available.

Simple change over is possible in Switch

Change over is easily possible in hand Switch, and change over is possible in hot key.

It is equipped with automatic scan mode

It is equipped with automatic scan mode to be replaced by automatically at regular intervals.

Silent type that beep does not sound

It is silent type that beep in change over does not sound.

We are connected and are available immediately

Installation such as exclusive drivers is available immediately just to be connected by unnecessary.

Specifications of product

HDMI Supported PCs change over device (KVM-HDHDU2)
KVM-HDHDU2

HDMI PC reshuffling device that supports 1920 X 1200 (WUXGA), 1920 X 1080 (full HD), wide resolution, and can share one set of HDMI correspondence display and USB mouse, USB keyboard, speaker in two PC.

Supported devices (PC) (Windows) PC/AT compatibles that Windows10, Windows8.1, Windows8, Windows7, Windows Vista (... SP1)(32bit, 64bit), Windows XP (... SP3)(32bit, 64bit) that mounted display terminal (HDMI type A) by default work
Supported devices (PC) (Mac) PowerPC machine that Interl Mac machines that Mac OS X (after 10.3) /macOS (after 10.12) works, Mac OS X (10.3-10.5) work ※Converter adapter to display terminal (DVI-D24pin/DVI-I29pin) is necessary.
Supported devices (game console) PlayStation/PlayStationR3 (system software version 3.66)
Supported devices (USB apparatus) USB apparatus /USB2.0 or USB apparatus for USB1.1
Supported devices (mouse) USB mouse ※1: ※1 mouse: We confirm that we work about 4 models as follows. Please use mouse of model number on use as follows. M-M1UBBK/RS, M-M1UBWH/RS, M-M2UBBK/RS, M-M2UBWH/RS
Supported devices (keyboard) DOS/VUSB keyboard (as for the special key of Mac, available at the time of connection to Mac), MacUSB keyboard (possible change over in [Ctrl] X 2+[Return]) (installation unnecessary of software) ※2: ※Customer of use, please prepare in keyboard with [ScrollLock] key in Mac 2 separately.
Supported devices (display) Display of the HDMI type A deployment ※We do not cope with 3D function.
Supported devices (speaker) Speaker mounted with 3.5 φ stereo mini-plug
Maximum Resolution: Wide resolution /1920 X 1200 (WUXGA), 4:3 resolution /1600 X 1200 (UXGA)
Change over sound None
Power supply Bus powered
Voltage rating 5V
Maximum power consumption Up to 2.65W
Maximum PC connection number Two
Change over method Hand Switch, hot key /[Ctrl] X 2+[Enter] key or [ScrollLock] *2 time +[Enter] key, mouse scroll button X 2 (※ 3 ※ 4) ※Setting in hot key is necessary 3. ※It is necessary to turn on mouse emulation function 4.

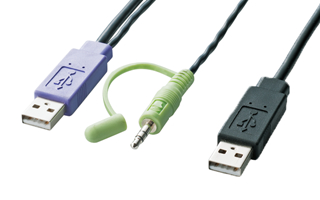

Interface (the PC side) HDMI type A (male) X 2, USB type A (male) X 4, 3.5 φ stereo mini-(male) X 2
Accessories: Manual
Interface (the peripheral device side) HDMI type A (female) X 1, USB type A (female) X 2, 3.5 φ stereo mini-(female) X 1
Can supply; electric current 1500mW(300mA) in total
Dimensions Width 78.4 X depth 62.4 X 23.5mm in height (we do not include cable, protrusion)
Weight : Approximately 410 g ※We include cable
Term of a guarantee One year

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
