Product information

Shine; external hard disk for TV recording

ELD-ERH020UWH

Attaching externally hard disk for "we shine TV" which coped with recording of not only hi-vision broadcast but also 4K broadcast in correspondence with recording of video distribution service "we shine TV" of NTT purara company recording.

Shine; external hard disk (ELD-ERH020UWH) for TV recording
  • EU Rohs order conformity product
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
Shine; external hard disk (ELD-ERH020UWH) for TV recording ELD-ERH020UWH
4953103293854
2TB Open price
Shine; external hard disk (ELD-ERH040UWH) for TV recording ELD-ERH040UWH
4953103293861
4TB Open price

Product photo (※ to enlarge the images, please click)

Features of product

Hard disk for light TV

Shine; TV 4K service recording recommendation attaching externally hard disk

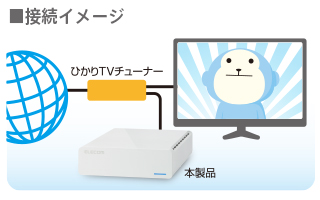

Of NTT purara company recommendation corresponding to recording of video distribution service "shine TV" of NTT purara company "shine, and is attaching externally hard disk for TV" recording. We can easily enjoy recording just to shine, and to be connected to TV tuner.

Video distribution service shines; with TV

Video distribution service that NTT Plala Inc. provides
We can enjoy program broadcast, video, music by specialized channel, various entertainment including book at every terminal including TV smartphone tablet, PC.

▼Shine, and TV service has a lot; (shine, and TV homepage opens with the other window.)

We bundle "simple connection guide"

It is attached in setup guides whom anyone can easily set if we set along illustration. ※We shine and are Manual for exclusive use of TV tuner.

It supports support for 365 days of relief

ELECOM synthesis information center glitters and bundles support dial label of TV customer center.

We shine and support TV4K broadcast recording

We shine and, as well as normal hi-vision broadcast, cope with picture recording of TV4K broadcast service.

Is connected to USB3.0-adaptive TV; and more usefully

You can use more convenient functions such as recording at 2 program same time if connected to TV for USB3.0.

※The in detail correspondence right or wrong of function depends on Specifications of TV side.

Correspondence shines; TV tuner

[shine TV-adaptive tuner model number]
ST-3400 / ST-3200
ST-4100 / AM900

※Your; shine, and please confirm TV-adaptive tuner.

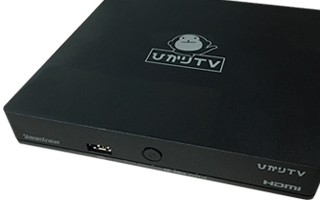

※Photograph is ST-3400.

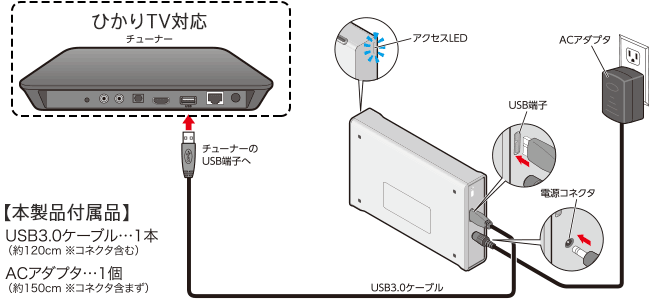

Connection method of This product and tuner

This product is available for picture recording use when connected to tuner.

※This product does not have power switch. When we insert AC Adapter in outlet and are connected to tuner, it is switched on automatically.
※USB3.0 cable, AC Adapter during the illustration mentioned above are This product Contents. (tuner is not attached.)

Setting method after tuner connection

This product is available for picture recording use when connected to tuner.
We connect This product to register hard disk with (initialization) to tuner. Please refer to "quick start guide" attached to the body.

※When displayed screen and procedures are different, you read Manual which is attached to tuner of errand, and please set.

We register hard disk

We connect This product to tuner. Please refer to "quick start guide" attached to the body.

Procedure (1)

Confirmation screen is displayed when we connect hard disk to tuner for the first time. We choose [connection setting] [decision] and push button with cursor of remote control.

Procedure (2)

[recording setting] We choose [USB hard disk connection setting] with screen [decision] overwhelm button.

Procedure (3)

Screen is displayed when we perform [USB hard disk connection setting] for the first time [certification failure]. We push button to format [reproduction].

Procedure (4)

Format is started.

Procedure (5)

If screen of format completion is displayed, initialization of hard disk is completion.

We set and were completed.

We were ready to record on hard disk in this.
After that "you shine and read Manual which is attached to TV tuner", and please record

We can be connected to USB-HDD picture recording-response TV

It is connectable to digital televisions such as sharp / lye male, TOSHIBA / reguza, SONY / bra beer, Panasonic / Viyella, LG electronics /Smart TV, high sense, DX ANTENNA, Orion. (as for the correspondence information from this)

※It is necessary for TV to cope with USB-HDD picture recording.

Fanless design

We protect hard disk from heat in designing that it is not filled with heat in case by natural convection and let you last a long time more. In addition, there is no noise of harsh cooling fan as it is fanless design.

Both width holders can do length holder, too

As length holder is available for width holder, setting that is most suitable around PC, TV is possible.

We are based on "RoHS order" of EU

It is eco-friendly product in conformity with "RoHS order" (we set a limit to use of specific harmful object for electric appliance, electronic equipment) of EU.

We are equipped with security slot

There is security slot on the back of the body. It is useful for prevention of carrying out and prevention of theft except original user.

Specifications of product

Shine; external hard disk (ELD-ERH020UWH) for TV recording
ELD-ERH020UWH

Attaching externally hard disk for "we shine TV" which coped with recording of not only hi-vision broadcast but also 4K broadcast in correspondence with recording of video distribution service "we shine TV" of NTT purara company recording.

ELECOM model number ELD-ERH020UWH
Dimensions: 183mm in width X 120mm in depth X 35mm in height
The number of the drives 1:
Capacity 2TB
Number of revolutions Non-fixation
Interface USB3.1(Gen1)/3.0/2.0
Input Voltage 100V, 50/60Hz (AC Adapter)
Connector type: USB3.1 Micro-Bx1
RAID function Unavailable
Security slot
We format at the time of shipment NTFS
Cooling FAN Unavailable
PC power supply interlocking movement
Access LED
RoHS order
Accessories: ) cable (include approximately 100cm connector) x1 compatible with USB3.1 Gen1(USB3.0/2.0, quick guide (guarantee memo) shine; brief connection guide, AC adapter (do not include approximately 150cm connector) for TV tuners
Available area Japan ※About use, support, guarantee out of Japan of This product, please note that you cannot accept at all.
The electrical equipment security method PSE mark indication
Term of a guarantee One year
Weight 980 g (only as for the body)
Supported Devices: Shine; TV tuner: ST-3400, ST-3200, ST-4100, AM900

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
