High resolution sound sourse-adaptive stereo headphones

EHP-DH1000ABK

We adopt Newly developed Axial-Acoustic 2Way Speaker System. High resolution sound source correspondence stereo headphones which realize performance of large ideal 2Way Speaker of frequency band by driver for low tone and screwdriver for high-pitched tone.

High resolution sound sourse-adaptive stereo headphones (EHP-DH1000ABK)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
High resolution sound sourse-adaptive stereo headphones (EHP-DH1000ABK) EHP-DH1000ABK
4953103333857
< Black > Open price
High resolution sound sourse-adaptive stereo headphones (EHP-DH1000ARD) EHP-DH1000ARD
4953103333864
< Red > Open price

Product photo (※ to enlarge the images, please click)

Features of product

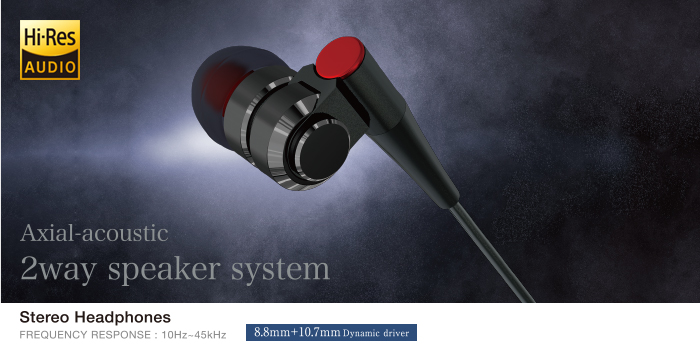

Newly developed Axial-Acoustic 2Way Speaker System adoption high resolution sound sourse-adaptive stereo headphones

It is high resolution sound sourse-adaptive stereo headphone that adopted Newly developed Axial-Acoustic 2Way Speaker System. We cope with "high resolution sound source" that is high-resolution music file.

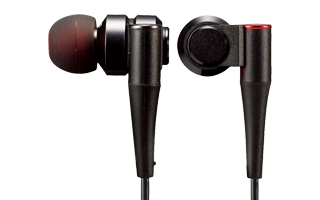

  • EHP-DH1000ABK
    < Black >

  • EHP-DH1000ARD
    < Red >

With high resolution sound source

High-Resolution (high resolution) sound sourse is high-resolution music file with amount of information more than 3 times of music CD.

High resolution sound source that sampling frequency (number to express record frequency), quantifying bit number (number to express record particle size) are high in can reappear to the details of sound than conventional sound source delicately.

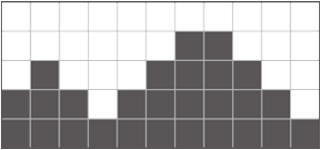

Normal sound source

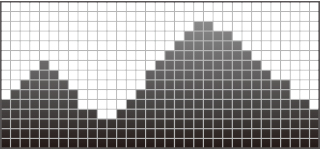

High resolution sound source

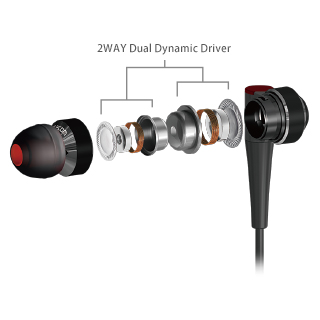

Driver of 2Way constitution

It is 2Way constitution to adopt driver for low tone of voice coil diameter φ 7mm and driver for high-pitched tone of φ 5mm.

Driver for low tone of front row dead structure

Driver for low tone assumed ideal acoustic 2Way method to cut unnecessary high level ingredient by front row dead structure. In this way, we realize large frequency band and linear response to music signal with a few distortions.

Driver for high-pitched tone that superior response is provided

As for the driver for high-pitched tone, response of superior high-pitched tone is provided by vibration board facing direct external auditory meatus.

We adopt neodymium magnet

We reproduce dynamic low level by adopting high magnetic force neodymium magnet to magnet.

We adopt lightweight CCAW voice coil

We improve response of vibration by adopting lightweight CCAW voice coil and realize clear sound quality with wider range.

We adopt housing made of all high-stiffness aluminum

We restrain unnecessary vibration to occur from driver York by adopting housing made of all high-stiffness aluminum and we regenerate music signal from timbal faithfully and realize solidity and lightweighting.

Gee, cap is attached

Gee, S M, large size is attached to cap so that a feeling of fitting is available

"Earplugs type" to fit well

Sound insulation characteristics are high and, by "earplugs type to fit ear well," reduce omission of sound and are available in peace without being influenced by ambient noise.

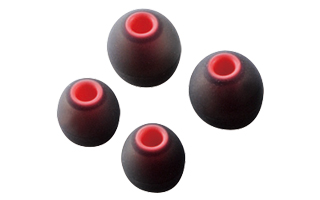

depusufittoiyakyappu

We adopt adjustable "depusufittoiyakyappu" at two phases of depth and we raise sealing characteristics and improve low tone expression. Gee, chief balances a feeling of fitting with sound quality improvement by changing the internal and external hardness.

We become independent and separate grand cable of right and left

Electrostatic noise between right and left decreases electromagnetic noise by becoming independent separation, and doing grand cable assembly of right and left in 4 lines and realizes soundscape and firm low tone.

Cord which adopted elastomer material

It is hard to affect cord and adopts elastomer material superior in tolerance.

Cord of 1.2m that can be connected relaxedly

We adopt cord of 1.2m that can be connected relaxedly and can gather up cord in attached Cord keeper.

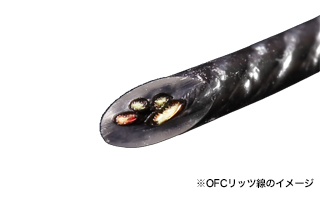

OFC litz wire with a little signal transmission loss

We adopt OFC litz wire realizing high level regeneration that cord has little signal transmission loss, and is fluent.

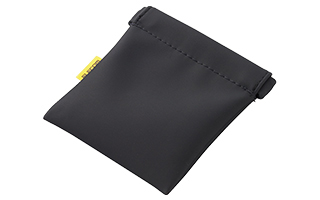

Exclusive porch attachment

We store headphones, and exclusive porch which is convenient for carrying around is attached.

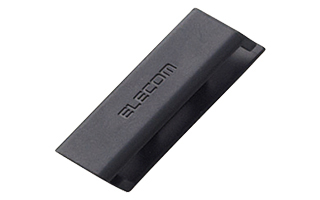

Includes cord keeper

Cord keeper which is convenient for storing of cord at the time of adjustment and carrying around of Cord length at the time of use is attached.

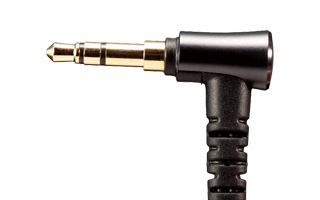

We adopt gold-plated L-type plug

On the body connection side, we adopt gold-plated L-type plug which we can connect compactly.

Specifications of product

High resolution sound sourse-adaptive stereo headphones (EHP-DH1000ABK)
EHP-DH1000ABK

We adopt Newly developed Axial-Acoustic 2Way Speaker System. High resolution sound source correspondence stereo headphones which realize performance of large ideal 2Way Speaker of frequency band by driver for low tone and screwdriver for high-pitched tone.

Model Airtight, earplugs type
Driver unit : Dynamic type (φ 8.8mm +φ10 .7mm)
Impedance: 14 Ω
Sound pressure sensitivity: 103dB/mW
The biggest input 100mW
Frequency response 10Hz - 45kHz
Cord 1.2 m (Y-type)
Plug φ 3.5mm tripolar mini-plug (L-type)
Color: < Black >
Weight : Approximately 11 g (we do not include cord)
Accessories: Ear cap (S/M/L), Cord keeper, storing porch, Manual
Environmental consideration matter RoHS
Term of a guarantee One year

※ Specifications may change without a notice, thank you for your understanding.
