Product information

stereo headset

EHP-CS100MBK

Headphones which adopted light clear design. Stereo headphone mike which adopts dynamic driver of φ 9.2mm, and realizes high level with clear feeling and middle level with transparency, rich low level.

Stereo headphone mike (EHP-CS100MBK)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
Stereo headphone mike (EHP-CS100MBK) EHP-CS100MBK
4953103335059
< Black > Open price
Stereo headphone mike (EHP-CS100MBU) EHP-CS100MBU
4953103335066
〈 Blue 〉 Open price
Stereo headphone mike (EHP-CS100MGN) EHP-CS100MGN
4953103335073
< Green > Open price New product
Stereo headphone mike (EHP-CS100MPN) EHP-CS100MPN
4953103335080
〈 Pink 〉 Open price
Stereo headphone mike (EHP-CS100MRD) EHP-CS100MRD
4953103335097
< Red > Open price
Stereo headphone mike (EHP-CS100MWH) EHP-CS100MWH
4953103335103
< White > Open price

Product photo (※ to enlarge the images, please click)

Features of product

Stereo headphones which realize high level with clear feeling and middle level with transparency, rich low level

We adopt dynamic driver of φ 9.2mm and are stereo headphone mike realizing high level with clear feeling and middle level with transparency, rich low level. We adopt light clear design.

  • EHP-CS100MBK
    < Black >

  • EHP-CS100MBU
    〈 Blue 〉

  • EHP-CS100MGN
    < Green >

  • EHP-CS100MPN
    〈 Pink 〉

  • EHP-CS100MRD
    < Red >

  • EHP-CS100MWH
    < White >

We reproduce good sound that I heard lively of response

We reproduce good sound that we did lively of response by adopting PET Film of only 6.0 microns to vibration board.

We adopt lightweight CCAW voice coil

We improve response of vibration by adopting lightweight CCAW voice coil and realize clear sound quality with wider range.

Earplugs type to fit ear

Sound insulation characteristics are high and, by "earplugs type to fit ear well," reduce omission of sound and are available in peace without being influenced by ambient noise.

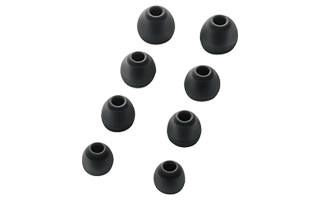

We are working under chief in year when a feeling of fitting is available

Ear cap is attached so that a feeling of fitting is available. 4 Dimensions which we added smaller XS Dimensions to is attached to general S M, large size.

Cable long 1.2m

It is 1.2m that can be connected relaxedly even if Cord length puts player in the bag.

We adopt elastomer material

It is hard to pick quarrel and adopts cord of elastomer material superior in tolerance. In addition, we give strength by putting nylon line in the core line.

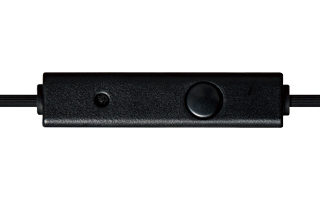

Model with Microphone to be able to make Pick up and terminate calls into

We are connected to smartphone having φ3.5mm4 pole minijack, and not only we enjoy music, but also Pick up and terminate calls is model with Microphone which there is, too. Microphone has incoming reply / Pick up and terminate calls end switch. We set Microphone position in H which is easy to talk even if we do not hold in hand.

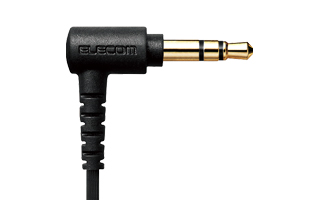

Gold-plated L-type plug

We adopt gilding "L-type plug" which we can connect compactly.

※Smartphone of 4 pole mini-plug methods is for exclusive use. Some 4-conductor mini plug smartphones are not supported. Please confirm the latest correspondence information in corresponding table.
※With Internet telephone such as Skype (TM), incoming reply / Pick up and terminate calls end switch does not work.
※By connected smartphone, we may use remote-control function at the time of music, video reproduction. Operation method varies according to each smartphone.
※Depending on application, incoming reply / Pick up and terminate calls end switch may not work.

Specifications of product

Stereo headphone mike (EHP-CS100MBK)
EHP-CS100MBK

Headphones which adopted light clear design. Stereo headphone mike which adopts dynamic driver of φ 9.2mm, and realizes high level with clear feeling and middle level with transparency, rich low level.

Model Airtight, earplugs type
Driver unit : Dynamic type (φ 9.2mm)
Impedance: 19 Ω
Sound pressure sensitivity: 93dB/mW
The biggest input 10mW
Frequency response 20Hz - 20kHz
Cord 1.2 m (Y-type)
Plug Dia. 3.5mm 4-conductor mini-plug (L-type)
Color: < Black >
Weight : Approximately 5 g ※excluding cord
Accessories: Ear cap (XS/S/M/L), Manual
Term of a guarantee Six months
Remote-control Microphone Supported devices Smartphone, tablet which are equipped with φ 3.5mm 4 pole minijack. ※There is apparatus which does not give some responses. Please confirm the latest correspondence information on ELECOM homepage.

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
