Product information

USB 2.0 LAN adapter

EDC-FUA2-B

USB 2.0 LAN adapter which only puts, and is usable most suitable for thin PC without wired LAN port.

USB 2.0 LAN adapter (EDC-FUA2-B)
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
USB 2.0 LAN adapter (EDC-FUA2-B) EDC-FUA2-B
4953103322134
< Black > 1,900 yen (tax-excluded)
USB 2.0 LAN adapter (EDC-FUA2-W) EDC-FUA2-W
4953103322141
< White > 1,900 yen (tax-excluded)

Product photo (※ to enlarge the images, please click)

Features of product

USB 2.0 LAN adapter which is most suitable for thin PC without wired LAN port

It is USB 2.0 LAN adapter which is most suitable for thin PC without wired LAN port.

  • EDC-FUA2-B
    < Black >

  • EDC-FUA2-W
    < White >

MAC address changer

Even environment where only MAC addresses registered beforehand such as offices can communicate by using software "MAC address changer" which can change MAC address of This product can use This product. (only Windows supports)

Selectable installation method

By attached CD-ROM or WEB downloading, we install driver software and can use Windows7, Mac OS X 10.10-11, macOS 10.12-13.

It is available without installing driver in Windows 10S/10/8.1 just to be connected to Universal Serial Bus port.

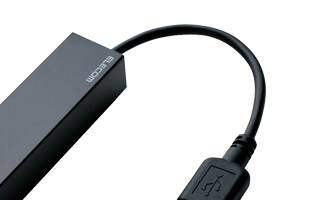

9cm cable which is convenient for carrying around

The length of the cable is 9cm that is convenient for carrying around.

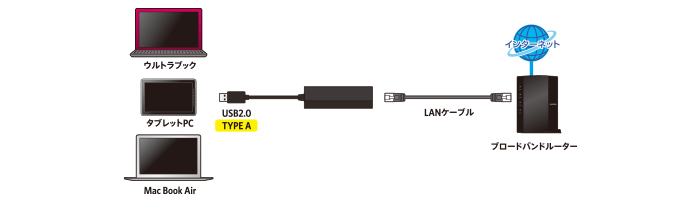

Connection Diagram

Specifications of product

USB 2.0 LAN adapter (EDC-FUA2-B)
EDC-FUA2-B

USB 2.0 LAN adapter which only puts, and is usable most suitable for thin PC without wired LAN port.

Supported devices: Mac which was equipped with CPU made in Windows PC which carried Universal Serial Bus port (Type-A), Intel Corporation
Supported OS Windows 10S(32bit/64bit) / 10(32bit/64bit) / 8.1(32bit/64bit) / 7(32bit/64bit)(SP1), macOS 10.13/10.12, Mac OS X 10.11/10.10 ※Windows10S / 10 / 8.1 gives a driverless response
Wired standard IEEE 802 .3(10BASE-T) / IEEE 802 .3u (100BASE-TX) / IEEE 802 .3x(Flow Control)
Wired connector RJ-45 (Auto MDI/MDI-X) X 1 port, Auto-Negotiation correspondence
Cable transmission speed (theoretical value) 10/100Mbps
Access method CSMA/CD
Correspondence protocol IPv4, IPv6
USB Upstream Port standard USB 2.0 / 1.1
USB Upstream Port interface Type-A (male) X 1 port
USB Upstream Port access speed (theoretical value) USB 2.0 High Speed / 480Mbps, USB1.1 full speed / 12Mbps
Input Voltage DC 5V
Power consumption 1.05W
Consumption electric current Approximately 210mA
Power supply method USB Bus powered
Dimensions (width X D X H) (W)Approximately 67* (D) approximately 20* (H) approximately 15mm (except cable part)
The USB cable head Approximately 9cm (except connector part)
Weight : Approximately 24 g
Housing materials (color) Plastic (Black)
Operating environment Temperature: 0-40 degrees Celsius, humidity: Less than 85% (but thing without dew condensation)
Various acquisition standards VCCI class B
Term of a guarantee One year
Accessories: One wired LAN adapter body, Manual, CD one piece
Corresponding software MAC address changer

※The latest correspondence information of this product is this.

※ Specifications may change without a notice, thank you for your understanding.
