Product information

Aerial cable for 4K8K-adaptive TV

DH-ATLS48K05BK

It is most suitable for conventional terrestrial broadcasting, the seeing and hearing, recording of 4K8K broadcast. Aerial cable for TV connection that was specialized in wiring with compact connector and tender slim cable.

Aerial cable (DH-ATLS48K05BK) for 4K8K-adaptive TV
  • Article number
  • Features
  • Specifications

Model number / lineup

Model number /JANCD Features Standard price Remarks
Aerial cable (DH-ATLS48K05BK) for 4K8K-adaptive TV DH-ATLS48K05BK
4953103293748
0.5m 1,920 yen (tax-excluded)
2,073 yen (tax-included)
Aerial cable (DH-ATLS48K10BK) for 4K8K-adaptive TV DH-ATLS48K10BK
4953103293762
1.0m 2,100 yen (tax-excluded)
2,268 yen (tax-included)
Aerial cable (DH-ATLS48K20BK) for 4K8K-adaptive TV DH-ATLS48K20BK
4953103293786
2.0m 2,460 yen (tax-excluded)
2,656 yen (tax-included)
Aerial cable (DH-ATLS48K30BK) for 4K8K-adaptive TV DH-ATLS48K30BK
4953103293809
3.0m 2,990 yen (tax-excluded)
3,229 yen (tax-included)
Aerial cable (DH-ATLS48K50BK) for 4K8K-adaptive TV DH-ATLS48K50BK
4953103293823
5.0m 3,530 yen (tax-excluded)
3,812 yen (tax-included)
Aerial cable (long model) (DH-ATLS48K70BK) for 4K8K-adaptive TV DH-ATLS48K70BK
4953103311459
7.0m 4,770 yen (tax-excluded)
5,151 yen (tax-included)
Aerial cable (long model) (DH-ATLS48K100BK) for 4K8K-adaptive TV DH-ATLS48K100BK
4953103311435
10.0m 6,200 yen (tax-excluded)
6,696 yen (tax-included)

Product photo (※ to enlarge the images, please click)

  • Features
  • Specifications

Features of product

Aerial cable for TV connection that is most suitable for terrestrial broadcasting, the seeing and hearing, recording of 4K8K broadcast

It is aerial cable for TV connection that is most suitable for terrestrial broadcasting, the seeing and hearing, recording of 4K8K broadcast.

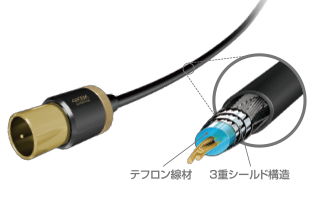

Triple Shield Construction

It is triple shield structure resisting reception of 4K8K broadcast (frequency band - 3224MHz).

We use Teflon wire rod

We reduce noise and use Teflon wire rod resisting ground-based digital broadcasting, reception of BS/CS broadcast.

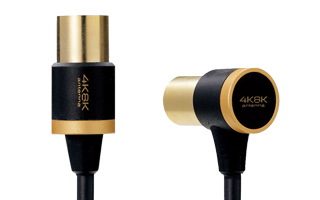

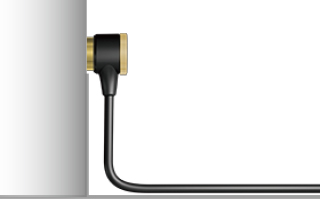

Small L-shaped connector

We adopt small L-shaped connector which we can install in connector one side along wall of room.

Slim cable which is easy to wire, and is hard to be outstanding

We adopt tender slim cable of 3.6mm in diameter that is easy to wire, and is hard to be outstanding.

We realize compactification

We keep design to connector part and realize compactification.

Gold plated pin connector

We strongly use Gold plated pin connector with a little signal deterioration to be rusted.

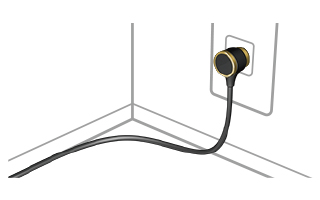

Connection diagram

※This product is indoor business.
※We cannot watch BS/CS broadcast and 4K8K broadcast by using This product.
※We may not receive broadcast depending on position and environment, interconnect equipment of receiving antenna neatly.

Specifications of product

Aerial cable (DH-ATLS48K05BK) for 4K8K-adaptive TV
DH-ATLS48K05BK

It is most suitable for conventional terrestrial broadcasting, the seeing and hearing, recording of 4K8K broadcast. Aerial cable for TV connection that was specialized in wiring with compact connector and tender slim cable.

Supported devices: TV, recorder with F type TV outlet and F type terminal, PC, distributor with TV tuner, container to separate
Connector type: L-type plug - straight type plug
Length 0.5m
Cable thickness 3.6mm
Cable type Superfine woolen thread and straw or type
Package Brister package
Plug plating Specifications Gold Coated Plugs
Shield method Triple Shield
Color: < Black >

※ Specifications may change without a notice, thank you for your understanding.
